Thermal insulation HYDROFOAM®
thermal-acousticexpanded polystyrene (EPS)panel

thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
Add to favorites
Compare this product


Characteristics

Type
thermal, thermal-acoustic
Material
expanded polystyrene (EPS)
Format
panel
Use
for flooring
Options
lightweight

Description

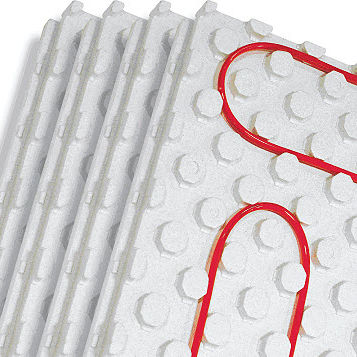

HYDROFOAM® maximizes radiant heat insulation for residential projects by ensuring the heat is dispersed evenly throughout the entire floor area, providing home owners with a more comfortable living and working environment. NUDURA has brought innovation to the market with our line of Concrete Forms and that innovation continues with HYDROFOAM®. Installation is fast and easy compared to traditional radiant heat insulation which requires multiple steps to run radiant heat piping. The 4’ x 4’ (1.2 m x 1.2 m) boards are 2 1/2“ (64 mm) thick and easily installed with an overlapping interlock on all four sides, ensuring the boards are locked in place during installation. HYDROFOAM® utilizes a 360° multi-directional friction fit anchor system in to which radiant heat piping is easily stepped into place in any direction required. HYDROFOAM® offers installers a lightweight high density expanded polystyrene (EPS) radiant heat insulation product that increases installation speeds, is easily cut to meet any angle or radius while providing R-10 of insulation value. Insulation under the concrete slab Fast and efficient installation 4’ x 4’ molded boards Multi-directional anchoring for 1/2” (13 mm) pipes Ship lapped/interlocking on all 4 sides Superior Performance Values - 2 1/2" (64 mm) board up to R-10 4" (100 mm) board up R-16 available by special order only Lightweight and easy to handle Increased comfort & energy savings Eco-Friendly - no CFCs or HCFCs 100% recyclable Resistant to water and moisture Can contribute to points under LEED® NC Programs
