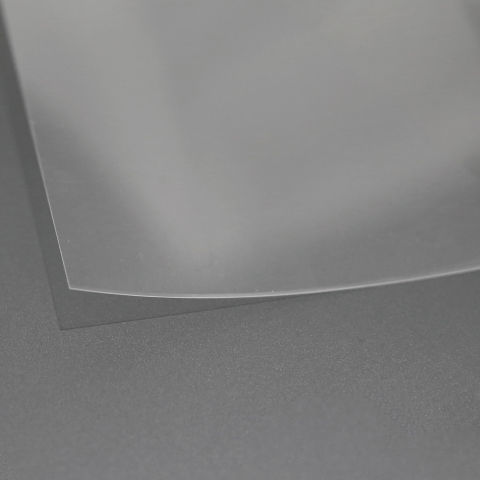

Anti-reflective film SF-1520HG

protectivetransparentself-adhesive

Overview
Anti-reflective polyester window film SF-1520HG designed for exterior application. Hard-coated surface for improved maintenance. When applied to both sides of glazing, reduces visible-light reflection and glare while maintaining high transparency (VLT 93.4%). Blocks over 99% of UV radiation (UVT <1%).

Main applications / Features

• Exterior window film for architectural glazing, shopfronts and facades
• Reduces visible-light reflection and mirror effect when applied to both sides of glass
• Hard coating reduces handling and cleaning scratches during installation and maintenance
• Provides shatter-resistance performance (meets criteria equivalent to JIS A 5759)
• UV protection: blocks >99% of UV (UVT <1%)

Outdoor durability / Sizes / Reference price
Outdoor durability: 2–3 years outdoors (reference value)
Available sizes: 1,250 mm × 30 m; 1,524 mm × 30 m
Reference price (per meter): 1,250 mm wide: 12,800 yen/m; 1,524 mm wide: 15,700 yen/m

Samples / Catalogue
Cut sample available (B6). Product video and data sheet available on the product page.

Functions (summary)
Shatter resistance: ◎
Heat Rejection: ー
Thermal Insulation: ー
Hard Coating: ○
Exterior Application: ○
Adhesion to Acrylic: ー
UV Protection: ◎
Print Compatibility: ー

Notes

• "◎" indicates the highest rating in the provided symbol legend (e.g. meets JIS A 5759 for shatter resistance; UV blocking over 99% for UV protection).
• Durability values are reference only and are not guaranteed.
• When using solvent-based inkjet printing, confirm ink compatibility and allow sufficient drying time; aggressive post-lamination pressure may cause ink lift.

Characteristics / Technical specifications

• Product code: SF-1520HG
• Product name: exterior-application capable anti-reflective film
• Brand / Series: Functional-Performance Films / Anti-Reflective Films
• Base film: polyester-based resin
• Adhesive: acrylic resins
• Total thickness (incl. base film and adhesive): 70 μm
• Solar Transmittance (%): 85.9
• Solar Absorptance (%): 8.5
• Solar Reflectance (%): 5.6
• Visible Light Transmittance (VLT) (%): 93.4
• UV Transmittance (UVT) (%): <1
• Thermal Transmittance (U-value) (W/m²·K): 6
• Shading Coefficient (SC): 0.99
• Outdoor durability: 2–3 years outdoors (reference)
• Available sizes: 1,250 mm × 30 m; 1,524 mm × 30 m
• Reference price (per meter): 1,250 mm wide: 12,800 yen/m; 1,524 mm wide: 15,700 yen/m
