Recycled plastic grass grid NGR65

low-density polyethylene (LDPE)

The Ocity NGR65 cellular slab stabilizes gravel and grassed surfaces while preserving soil permeability. Its honeycomb/open-cell structure provides mechanical strength, promotes three-dimensional root development and ensures a stable, driveable surface ideal for urban landscaping.

Main applications:

• Urban parking areas
• Driveways (light-vehicle, occasional)
• Pathways and pedestrian areas
• Fire access routes and utility/maintenance tracks

Key benefits:

• Excellent mechanical strength through honeycomb geometry for aggregate stability
• Promotes deep and three-dimensional grass root development for dense anchoring of vegetated surfaces
• Fully permeable — supports natural rainwater infiltration, reduces runoff and limits soil compaction
• Made from 100% recycled and recyclable LDPE — environmental responsibility and resource management
• Lightweight, easy to handle and quick to install
• UV-resistant finish and durable for long-lasting aesthetics

Installation summary:

• Excavate soil and check subgrade permeability; if inadequate, provide safety drainage.
• Install an anti-contamination geotextile.
• Prepare a load-bearing, draining foundation layer according to subgrade characteristics.
• Stabilise edges with borders and compact in successive layers.
• Prepare a screeded and compacted bedding layer as foundation.

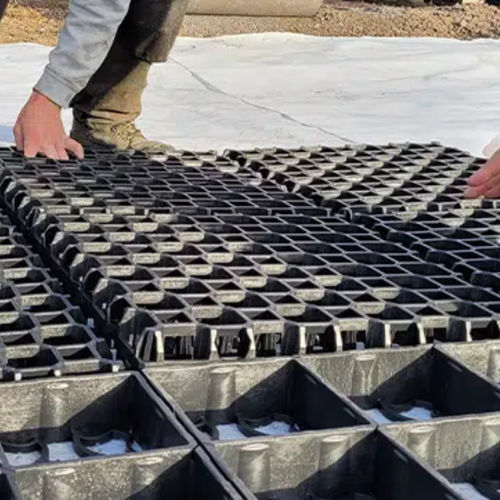

• Lay slabs progressively following the layout plan, place fixings in the direction of progress and repeat row by row.
• Cutting is possible at edges (avoid cutting in trafficked zones; place cuts in non-trafficked areas if possible).
• Once slabs are installed, fill with the appropriate infill material (grass infill or gravel) and compact as required.

Documentation & media provided on the page:

• Product sheet (external link)
• Installation guide (external link)
• Implementation and presentation videos (MP4 links)

Characteristics / technical specifications:

• Model: Ocity NGR65
• Size: 500 x 500 mm
• Height: 65 mm
• Coverage per slab: 0.25 m²
• Material: 100% recycled & recyclable LDPE
• Manufacturing: Made in France
• Permeability: Fully permeable (promotes natural rainwater infiltration)
• Suitable for: pedestrian areas, urban parking, light-vehicle driveways, fire access and utility-vehicle traffic (occasional)
