Recycled plastic grass grid NIDAGRASS NG040

low-density polyethylene (LDPE)

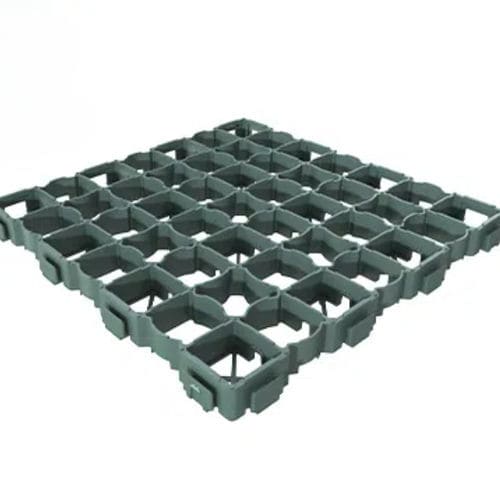

The Nidagrass NG040 cellular slab is a honeycomb-structured panel designed to reinforce grassed areas subject to foot traffic and occasional vehicle passage while preserving natural infiltration and appearance.

Main applications:

• Light parking
• Parking areas
• Fire access routes
• Agricultural and service tracks

Key benefits:

• Grass reinforcement that preserves natural appearance and water infiltration
• Open-cell honeycomb structure protects the root system and prevents compaction
• Fully permeable, allowing direct rainfall infiltration
• Integrated clipping system for fast, secure assembly
• UV-resistant finish for long-term performance

Installation summary:

• Excavate and check subgrade permeability; provide a safety drainage if permeability is insufficient
• Install an anti-contamination geotextile
• Construct a load-bearing, draining foundation and finish with a 20 cm soil/stone mix compacted in layers
• Prepare a 2–4 cm bedding layer and begin laying slabs from one end, engaging clips in the laying direction
• Fill slabs with growing substrate, sow grass (25–30 g/m²) with suitable seed mix, water and roll; open to traffic after establishment

Technical specifications:

• Size: 500 x 500 mm
• Height: 40 mm
• Area per slab: 0.25 m²
• Available colours: Brown, Green, Grey, Black
• Material: 100% recycled & recyclable LDPE
• Permeability: fully permeable (maintains natural infiltration)
• Finish: UV-resistant
• Origin: Made in France
