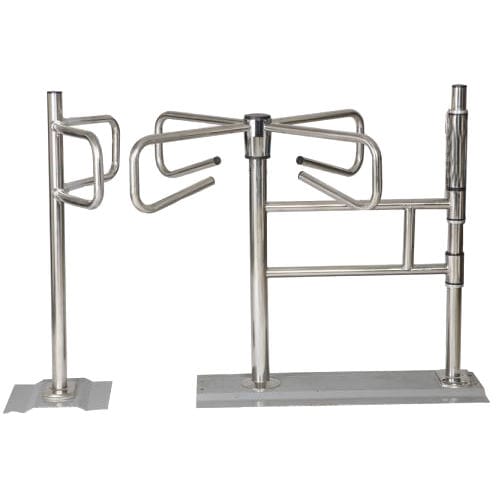

Half-height turnstile NU9705KS

stainless steelfor access controlsecurity

Nundnet NU 9705KS, is a turnstile, mechanical swing gate designed for supermarkets like controlled entry exit locations. The unit is either mechanical only or mechanical & lockable with auto close by spring. The housing is made of polished stainless steel (SUS304 default) or various other options. The swing arm is provided with the filler panel so that signs the can printed on both sides, and arms are of various lengths for the passage width of 600, 800, 1000, 1200mm. All the units are with ingress protection rating of IP53, hence suitable for indoor application. The swing gate can be provided with spring control function for opening from right and left, left only, right only opening function. HOUSING - Nundnet NU 9705KS uses iron coated with chrome or 304 stainless steel that has excellent resistance to a wide range of atmospheric environments and many corrosive media. It is subject to pitting and crevice corrosion in warm chloride environments and to stress corrosion cracking above about 60°C. It is considered resistant to potable water with up to about 200 mg/L chlorides at ambient temperatures, reducing to about 150 mg/L at 60 °C. OPTIONS - Available as single swing, double swing, single & double swing combination
