Characteristics

Opening system
sliding
Material
galvanized steel
Configuration
with bars, with panels
Technical characteristics...
motorized
Options
custom
Color
gray
Market
home, industrial, for public spaces, for playgrounds, for school, for athletic fields, for airport
Length

Min.: 3,000 mm (118 in)

Max.: 8,000 mm (315 in)

Height

Min.: 630 mm (25 in)

Max.: 2,430 mm (96 in)

Description

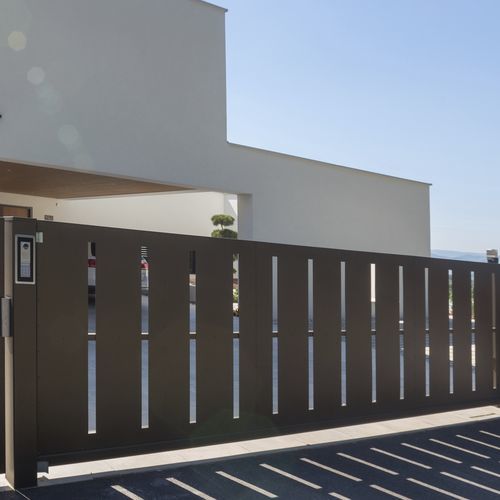

The key advantage of the self-supporting gate is the mode of operation. Using a carrier mechanism, they slide above the ground, closing and opening the entrance. Opening for the self-supporting gate is only necessary in the doorway. The gate can be closed manually or through an electric motor drive. In the case of manual closing, a lock with a handle is inserted into the gate and special fittings for the in-line gate are attached to the end pillar. The Self-supporting in-line gate consists of two (2) guiding pillars on one side, a gate wing, a catching pillar on other side, a carrier mechanism with trolleys that allow smooth and easy movement of the gate, rollers on the pillar and gate catchers on the catch pillar. The Self-supporting gate needs a foundation of suitable dimensions, depending on the load capacity of the ground and length of the gate. MATERIAL - Posts: powder coated hot-dip galvanized steel profiles Gate frame: powder coated hot-dip galvanized steel profiles Gate infill: steel wire, steel sheet, hollow or full steel profiles all galvanized and powder coated OPENING WIDTH (MM) - From 3000 to 8000, standard in steps 500, other lengths made-to-order Other heights made-to-order
