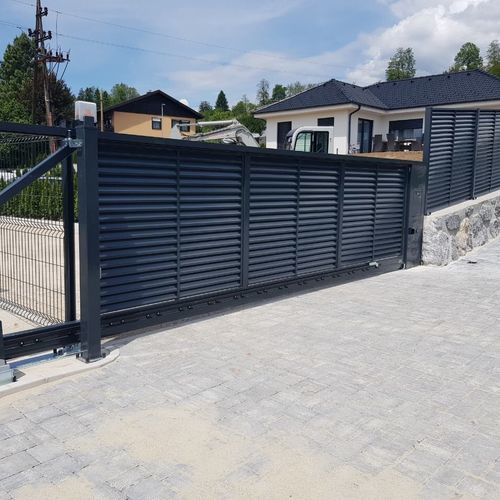

The Sliding in-line fence gate is usually designed for vehicles to enter an enclosed area. It enables closure to entrances of up to 8 m, depending on the height of the gate wing. Opening for the self-supporting gate is only necessary in a doorway. In the case of manual closure, a lock with a handle is inserted into the gate, and special fittings for the in-line gate are attached to the end pillar.
The Sliding in-line gate consists of two (2) guiding pillars on one side, a gate wing, a catching pillar on other side, a carrier mechanism with trolleys that allow smooth and easy movement of the gate, rollers on the pillar and gate catchers on the catch pillar. The Sliding in-line gate requires a rail foundation of suitable dimensions, depending on the ground’s load capacity and gate length.
MATERIAL - Posts: powder coated hot-dip galvanized steel profiles
Gate frame: powder coated hot-dip galvanized steel profiles
Gate infill: steel wire, steel sheet, hollow or full steel profiles all galvanized and powder coated
OPENING WIDTH (MM) - up to 11000 max
GATE HEIGHT (MM) - TOP LEAF EDGE - 630 830 1030 1230 1430 1530 1630 1730 1830 2030 2230 2430
Other heights made-to-order
POSTS (MM) - 100 x 100, 150 x 150 steel profiles, dependent on gate height and length
TYPES OF INFILL - Mesh panels 3D, 2D, perforated sheet metal, slats, welded profiles of type Strong, Lord, Tube, Bambus and Visio range Other types of infill made-to-order
LOCK - Installed only when gate will be manually operated, externally mounted stainless steel mechanism and aluminium casing lock with handle
COLORS - RAL 6005, RAL 7016, RAL 7035, RAL 7040
