Sun protection glass panel OKASOLAR 3D

structuraldouble-glazed3D

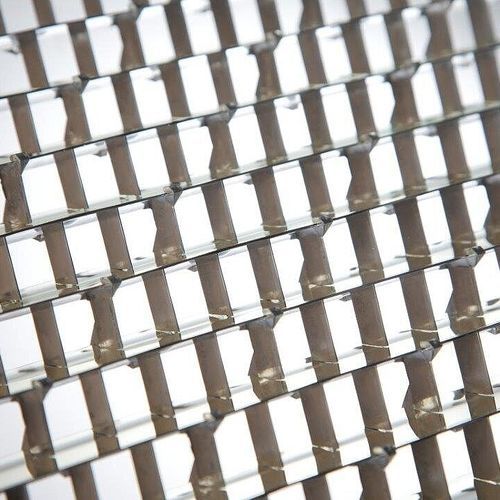

OKASOLAR 3D is an insulated glazing system with a three-dimensional, highly reflective sun protection grid in the cavity between the glass panes. The geometry of the sun protection grid has been optimised for roof applications. The direct solar transmission is blocked at all times, irrespective of the height of the sun. This effectively reduces the heat gain into the interior of the building. At the same time a large Proportion of diffuse daylight from the northern hemisphere gets into the interior. This results in a more even light distribution in the interior and significantly less fluctuation in brightness than with direct sunlight. As facade glazing we recommend our products OKASOLAR W and OKASOLAR F.* Thanks to its three-dimensional, highly reflective sun protection grid, OKASOLAR 3D offers: High-Performance sun protection Reduced heat gain Low TSET High light Transmission Partial trough-vision to the North Homogenous appearance without joints Sufficient daylight and reduction of artificial light Maintenance and fault-free Can be easily recycled Visibility for birds The special feature of OKASOLAR 3D is that the sun protection grid is integrated into the cavity of the insulated glazing system, so there are special requirements with regard to installation, maintenance or repair, and the entire system can be treated just like standard insulated glazing. The thickness and type of glass depend on structural and building requirements. However, for structural reasons the bending radius is to be limited to 12 m under Deformation.
