Insulating glass panel OKASOLAR P

solar controllow-estructural

Product Details
Glazing with Direction-sensitive Privacy Screening

Product Overview

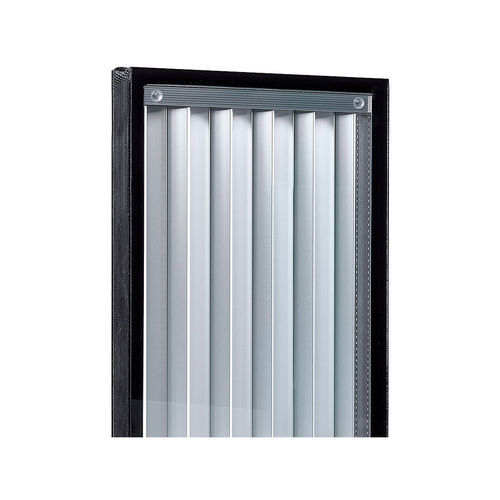

OKASOLAR P is an insulating glass with fixed, vertical louvres in the cavity between the glass panes. OKASOLAR P enables partial transparency in one direction at the same time as privacy screening adapted to individual requirements in the other direction, and has been optimised for use in the building façade.

Benefit

• Direction-sensitive privacy screening
• Partial through-vision
• High daylight levels
• Can be easily recycled
• Visibility for birds

Build-up + Function
The special feature of OKASOLAR P is that the louvres for privacy screening are integrated in the cavity between the glass and therefore pose no special requirements concerning the installation, maintenance and cleaning. In fact, the OKASOLAR element can be treated like conventional insulating glass. The glass thickness and type are based on the structural needs and constructional requirements.

• 2-pane build-up:
  Outer pane made of thermally treated glass
  Cavity: 24 mm with integrated louvres and gas filling
  Inner pane made of thermally treated glass, heat-reflective layer #3
• 3-pane build-up:
  Outer pane made of thermally treated glass
  Cavity 1: 24 mm with integrated louvres and gas filling
  Inner pane made of thermally treated glass, heat-reflective layer #3
  Cavity 2: 8 to 12 mm with gas filling
  Inner pane made of thermally treated glass, heat-reflective layer #5

Technical Data

• Glass dimension parallel to louvre axis: max. 3,000 mm
• Glass dimension perpendicular to louvre axis: max. 1,000 mm
• Louvre length: max. 3,000 mm
• The maximum area is 3 m². Special shapes are possible.

Performance Tables
Type OKASOLAR | T_v % | g-value % | Ug value [W/(m²K)] (Krypton | Argon | Air) (Cavity 24 mm)
P 30-0 | 1 | 3 | 1.3 | 1.5 | 1.7
P 30-08 | 28 | 25 | 1.3 | 1.5 | 1.7
P 30-23 | 43 | 37 | 1.3 | 1.5 | 1.7

2-pane-build-up with low-e coating as well as solar control coating 70/37:
P 30-0 | 1 | 12 | 1.3 | 1.5 | 1.7
P 30-08 | 24 | 23 | 1.3 | 1.5 | 1.7
P 30-23 | 38 | 25 | 1.3 | 1.5 | 1.7

3-pane-build-up with low-e coating:
P 30-0 | 1 | 1 | 0.6 | 0.8 | 1.0
P 30-08 | 25 | 21 | 0.6 | 0.8 | 1.0
P 30-23 | 39 | 30 | 0.6 | 0.8 | 1.0

3-pane-build-up with low-e coating as well as solar control coating 70/37:
P 30-0 | 1 | 6 | 0.6 | 0.8 | 1.0
P 30-08 | 22 | 18 | 0.6 | 0.8 | 1.0
P 30-23 | 34 | 21 | 0.6 | 0.8 | 1.0

Caractéristiques / Spécifications techniques

• Insulating glass with fixed, vertical louvres
• Direction-sensitive privacy screening
• Partial transparency in one direction
• Optimised for building façades
• 2-pane and 3-pane build-up options
• Thermally treated glass
• Heat-reflective layers
• Maximum glass size: 3,000 mm x 1,000 mm
• Maximum area: 3 m²
• Special shapes possible
• Ug value (W/(m²K)): 0.6 to 1.7 depending on configuration
• Recyclable
• Bird-friendly visibility
