Insulating glass panel OKATECH P

low-estructuraldouble-glazed

Product Details
Glazing with Direction-sensitive Privacy Screening

Overview

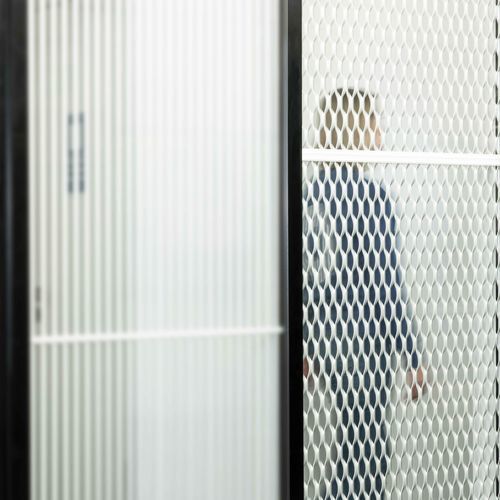

The insulating glass with an expanded metal insert in the cavity serves as privacy protection and at the same time as a design element with variable functions.
OKATECH P enables partial transparency in one direction while providing privacy screening in the other direction, and has been optimised for use in building façades.

Benefit

• Direction-selective privacy screen
• Partial through-vision
• High daylight levels
• Can be easily recycled
• Visibility for birds

Build-up + Function
The special feature of OKATECH P is that the expanded metal mesh for privacy screening is integrated in the cavity between the glass and therefore poses no special requirements concerning installation, maintenance, and cleaning. The OKATECH element can be treated like conventional insulating glass. The glass thickness and type are based on the structural needs and constructional requirements.

Technical Data

• Glass height max.: 3000 mm
• Glass width max.: 4000 mm
• Maximum area: 7 m²

Performance Table
OKATECH P
Functional coating
U_g-value [W/(m²K)]

Type | Krypton | Argon | Air
Double glazing | - | - | 2.7
Triple glazing | low-e / solar | 1.0 / 0.9 | 1.4 / 1.3 | 1.7 / 1.6

Characteristics / Technical Specifications

• Insulating glass with expanded metal mesh for privacy and design
• Direction-selective privacy screening
• Partial transparency in one direction
• Optimised for façade use
• Integrated mesh requires no special installation or maintenance
• Glass thickness/type based on structural requirements
• Max glass height: 3000 mm
• Max glass width: 4000 mm
• Max area: 7 m²
• U_g-values for triple glazing (Krypton: 1.0/0.9, Argon: 1.4/1.3, Air: 1.7/1.6 W/(m²K)); double glazing with air: 2.7 W/(m²K)
