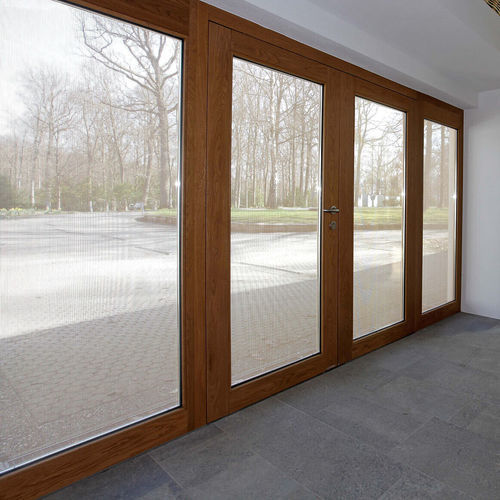

Insulating glass panel OKATECH

sun protectionfire protectiondouble-glazed

Product Details
Insulating glass with wire mesh insert

Product Description
Glass facades with wire mesh inserts always set visual accents. The metal fabric in different types of materials and thicknesses are not only attractive elements of design but also fulfill high requirements on sun and glare-protection and allow views to the outside.
During the day, they give the building shell a special glow and the façade has a metallic shimmer in the sunlight. At night, when artificial light is used, they allow deep views into the interior. In addition to façades and parapets, OKATECH wire mesh is also suited for sophisticated interior design applications.

Benefit

• The gleaming metal inlays give the facades a unique character and a special brilliance
• Different properties of the building shell
• Combination of various metals and coatings
• Variable geometry and dimension
• Sophisticated design solutions
• Embedding in a Multifunctional Module (MFM) is possible
• The energy balance of the building can be significantly improved by combining OKALUX@ HPI

Functionality

• Angle-selective sun and glare protection
• Reduced solar entry into the building
• Visibility as bird protection function
• Fire protection according to requirements

Sustainability

• Fully recyclable
• Long-lasting, maintenance-free and easy to clean

User Comfort

• Successful combination of privacy and partial view
• Comfortable interior atmosphere through evenly diffused daylight

Build-up + Function
Double glazing build-up – vertical glazing
OKATECH wire mesh is available in different types such as Kiwi and Mandarin.

Technical Data

• Maximum dimensions: 2,000 mm x 4,000 mm (depends on the type of wire mesh), larger sizes available upon request
• Maximum dimensions: 7 m²

OKATECH Wire Mesh
Functional coating | Ug-value [W/(m²K)] | TSET (%) min.¹ - max.² | Light Transmission (%) min.¹ - max.²
Double glazing
Type: Kiwi
low-e: Krypton 1.0 | Argon 1.2 | Air 1.5 | TSET 22-27 | Light Transmission 22-30
solar: Krypton 0.9 | Argon 1.1 | Air 1.4 | TSET 14-20 | Light Transmission 17-26
Type: Mandarin
low-e: Krypton 1.0 | Argon 1.2 | Air 1.5 | TSET 22-27 | Light Transmission 22-30
solar: Krypton 0.9 | Argon 1.1 | Air 1.4 | TSET 14-20 | Light Transmission 17-26
¹ for angle of incidence γ = 60°
² for angle of incidence γ = 0° (vertical to the glass surface)

Characteristics / Technical Specifications

• Product type: Insulating glass with wire mesh insert
• Available mesh types: Kiwi, Mandarin
• Maximum panel size: 2,000 mm x 4,000 mm (7 m²)
• Ug-value (W/(m²K)): 0.9 - 1.5 depending on gas fill and coating
• TSET (%): 14 - 27 depending on type and coating
• Light transmission (%): 17 - 30 depending on type and coating
• Applications: Facades, parapets, sophisticated interior design
• Features: Sun and glare protection, bird protection, fire protection, privacy, daylight diffusion, recyclable, maintenance-free
