Category: Top-hung windows
Tags: double glazed, energy-saving, roof window, roof windows, top-hung window, toughened pane, wooden

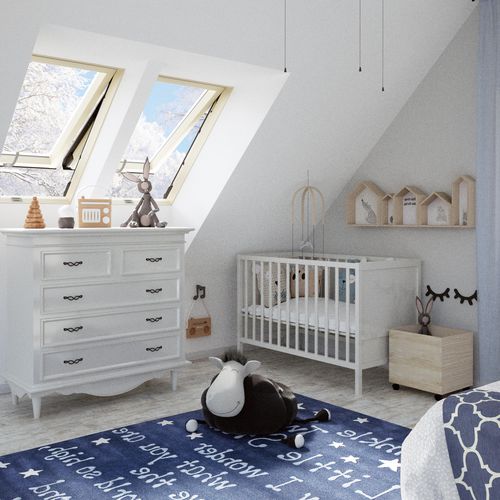

ISK E2 – Top hung-windows are a unique, confirmed by the Patent Application construction, that provides two absolutely seperate ways of opening the sash: tilting and sliding. The tilting function enables the smooth regulation of the sash in 0-30 degrees angle and 60-degree opening. At any times, the window does not take any place of the room – that ensures not only the incredible ease of movement but also the comfort of adjusting the carpentry even to the really small and tight spaces. For instance, the sliding function eases rotation of the external glass and enables its precise cleaning. Such window can be also used as a safe entrance to the roof.
ADDITIONAL INFORMATION
Function window / skylight -
Top-hung windows
Glazing unit in window -
Double glazed
Material -
Wood
U-value of window -
1,3 W/m²K
U-value of glass -
1,0 W/m²K
Outer pane -
Toughened pane
Coating -
–
Gas -
Argon
Warm spacer -
1x
Low emission coat -
1x
Profile -
SOLID+ impregnated pine wood, three coats of varnish
Gaskets -
4
Air inlet -
NEO-VENT
Handle -
ExtraSecure with lock
Micro-ventilation -
Yes
Roof pitch -
15° – 65°
Dźwiękochłonność okna -
Rw = 32 (dB)
