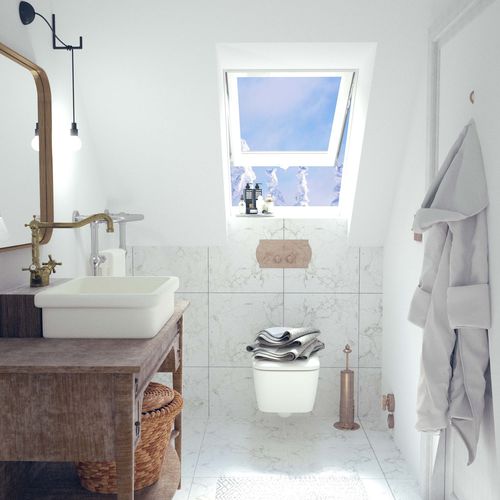

Projection roof window IGKV E2
PVCdouble-glazedthermal break

projection roof window
projection roof window
projection roof window
projection roof window
projection roof window
projection roof window
projection roof window
Add to favorites
Compare this product


Characteristics

Opening system
projection
Material
PVC
Glazing
double-glazed
Performance
thermal break
Other characteristics
energy-saving
Width

Min.: 55 cm
(21.65 in)

Max.: 134 cm
(52.76 in)

Height

78 cm, 98 cm, 118 cm, 140 cm, 160 cm
(30.71 in, 38.58 in, 46.46 in, 55.12 in, 62.99 in)

Description

Category: Top-hung windows Tags: double glazed, energy-saving, PVC, roof window, roof windows, top-hung window, toughened pane IGKV E2 – Top hung-windows are a unique, confirmed by the Patent Application construction, that provides two absolutely seperate ways of opening the sash: tilting and sliding. The tilting function enables the smooth regulation of the sash in 0-30 degrees angle and 60-degree opening. At any times, the window does not take any place of the room – that ensures not only the incredible ease of movement but also the comfort of adjusting the carpentry even to the really small and tight spaces. For instance, the sliding function eases rotation of the external glass and enables its precise cleaning. Such window can be also used as a safe entrance to the roof. ADDITIONAL INFORMATION Function window / skylight - Top-hung windows Material - PVC Glazing unit in window - Double glazed U-value of window - 1,2 W/m²K U-value of glass - 1,0 W/m²K Outer pane - Toughened pane Coating - – Gas - Argon Warm spacer - 1x Low emission coat - 1x Profile - SOLID+ PVC foam filled multi-chamber PVC profiles Gaskets - 4 Air inlet - NEO-VENT Handle - ExtraSecure with lock Micro-ventilation - Yes Roof pitch - 15° – 65°
