Multi-level parking system DOUBLE SPACER 25/2
mechanicalhydraulic3 to 5 vehicles

Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 2
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 3
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 4
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 5
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 6
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 7
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 8
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 9
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 10
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 11
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 12
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 13
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 14
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 15
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 16
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 17
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 18
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 19
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 20
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 21
Multi-level parking system - DOUBLE SPACER 25/2 - O.ME.R. SpA - mechanical / hydraulic / 3 to 5 vehicles - image - 22
Add to favorites
Compare this product
Go to the O.ME.R. SpA website for more information

Characteristics

Type
multi-level
Operation
mechanical, hydraulic
Capacity in number of vehicles
3 to 5 vehicles
Use
residential, for building
Capacity in parking levels
2 tray
Other characteristic
platform

Description

Product overview

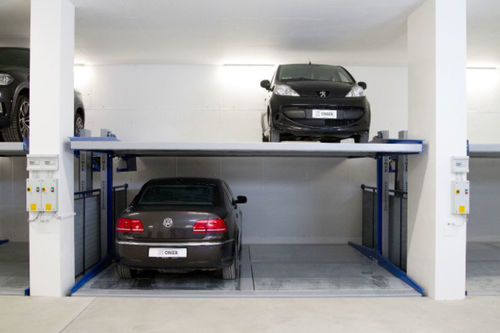

  • The Double Spacer 25/2 is an independent double stacker with a pit that enables parking up to four cars within the footprint of two, while keeping each platform operation independent.
  • Self-standing design eliminates the need for anchoring to the building and prevents transmission of vibrations to the structure.
  • Pit is required so vehicles on the lower platform can be removed without moving vehicles on the upper platform.


Key features
  • Platform finish: hot-dip galvanization on top and underside to ensure continuous, drip-free surfaces.
  • Rising piston integrated inside the column for compactness and enhanced protection.
  • Motor group and hydraulic tank mounted in a tray suspended under the upper platform to minimize floor encumbrance and simplify installation.
  • Tank includes an emergency hand pump to unlock the mechanical stopper and lower the platform if needed.
  • Allows asymmetrical vehicle positioning and functions correctly with unbalanced loads.


Safety, mechanics and maintenance
  • Mechanical locking: stopper on the torsion bar provides incremental locking positions every 3 cm (one-tooth pitch of the ring-tooth nut).
  • Torsion bar system: torsion bar linked to columns by toothed ring nuts stabilizes top-load balance; bearings at bar ends ensure quiet, durable rotation.
  • Scrolling pads: Teflon pads preloaded with molybdenum sulphide reduce friction and wear inside the columns.
  • Platform slats: fully hot-dip galvanized slats form a smooth, walkable surface and prevent liquid dripping from the upper to the lower platform.
  • Control station: simple button box with safety/emergency key for authorized operation and maintenance access.


Technical specifications
  • Model: Double Spacer 25/2
  • Function: independent double stacker with pit (stand-alone duplicator platform)
  • Parking capacity: up to 4 cars in the footprint of 2
  • Pit: required to remove lower-platform vehicles independently
  • Platform finish: hot-dip galvanization (top and underside); smooth slats
  • Rising piston: internal to column for compactness and protection
  • Mechanical locking pitch: 3 cm increments (one tooth on ring-tooth nut)
  • Scrolling pads: Teflon preloaded with molybdenum sulphide
  • Motor group & hydraulic tank: suspended under upper platform; tank with emergency hand pump
  • Mounting: self-standing (no anchoring to the building required)

Catalogs

No catalogs are available for this product.

See all of O.ME.R. SpA‘s catalogs
Go to the O.ME.R. SpA website for more information
