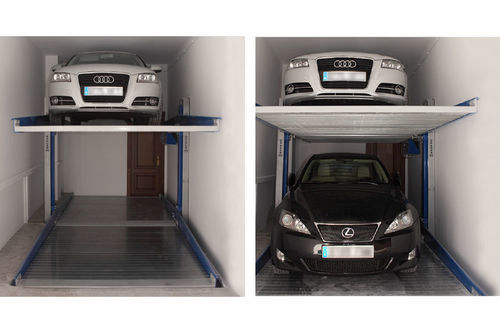

Multi-level parking system SPACER 25/2

mechanicalelectrichydraulic

Overview

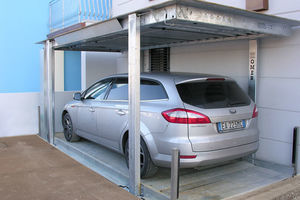

Spacer 25/2 is an independent double parking stacker designed for installation with a pit, enabling removal of the lower platform vehicle without moving the upper platform. It is engineered for industrial use with ergonomic access provisions for users with reduced mobility.

Main functional and safety features

• Requires a pit: bottom platform access without moving the upper platform.
• Torsion bar integrated in the first platform frame to stabilise platform load regardless of vehicle orientation.
• Hydraulically operated mechanical block at the top of the column to secure the platform at all times.
• Torsion bar fitted with four pinion gears (two at each end): outer pinions slide the bar on the rack; internal pinions are part of the standard locking mechanism for safety.
• Steel safety gear electrically interlocked on the internal toothed pinion to lock the platform mechanically in case of sudden release.
• All wiring protected by a PVC catenary to prevent crushing of cables during machine movement.
• Electric motor, hydraulic pump, oil tank and standard hand pump pre-installed on the machine — no separate motor room required.
• Platform staves fully galvanized and shaped to prevent dripping to the lower level.
• Ergonomic platform design allowing easy access, including for disabled users.

Additional notes

• Photographic sequence on the product page illustrates system operation and practical vehicle management.

Characteristics / technical specifications

• Product type: independent double stacker with pit
• Model: Spacer 25/2
• Platform load capacity: up to 2.5 t (2,500 kg) per platform
• Stabilisation: torsion bar in first platform frame with four pinions
• Safety: hydraulically operated mechanical block; electrically interlocked steel safety gear
• Drive & utilities: electric motor, hydraulic pump, oil tank and hand pump installed on machine
• Cable protection: PVC catenary
• Construction: galvanized platform staves shaped to prevent dripping
• Ergonomics: accessible platform design for users with reduced mobility
