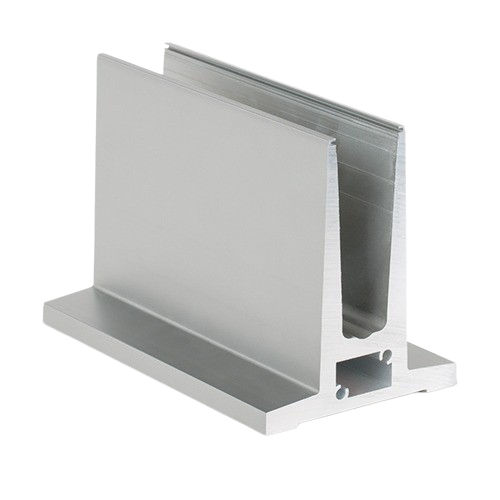

Anodized aluminum profile 10.4010.005.10

U-shapedfor railingfor partition wall

Innovations Connected. With the TL-4010 profile we have created a product which is suitable for the most diverse ends. It cannot only be used as a balustrade system, but also as a wind shield or a room partition. With a rail load of 1.5 kN/m, balustrade heights of up to 1297 mm are possible as fall protection. In cases of wind shields without fall protection, even up to 2645 mm can be realised. As a matter of fact, the profile is suited both for interior and exterior applications. It withstands a linear load of 1.5 kN and is suitable for glazed units with laminated safety glass made of 2 x 8 mm tempered glass and/or laminated safety glass made of 2 x 10 mm tempered glass. For the glass panels we recommend a maximum width of 1300 mm or 55 kg per panel to ensure the adjustment system can fully operate and for safe handling purposes. height (in): 5 11/16 width (in): 4-11/16 length (in): 16' 4 glass thickness (in): 1/2 - 7/8 Surface: Mill finish, natural anodised, RAL glossy, RAL matt, RAL structured matt installation type: outdoor installation, top mount number of drill holes per 2500 mm: 25 fixing type: concrete, steel, wood Color Line: Yes drainage: Yes
