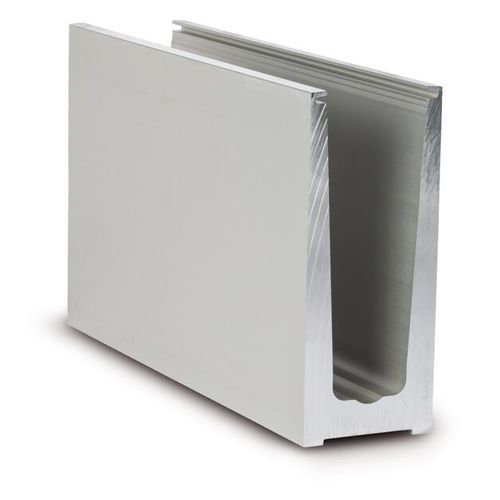

Anodized aluminum profile 10.6010.002.11

U-shapedfor railingfor interior

The Mother of Profiles. The TL-6010 U-profile is not only cost-effective. It is actually the mother of all profiles, or even better: It is the hidden pearl among profiles. The TL-6010 U-profile is completely invisible and in combination with a structural connection profile, its application versatility increases considerably. As a matter of fact, the profile is suited both for interior and exterior applications. It can withstand a linear load of more 1.0 kN and is appropriate for glass thicknesses between 12 mm and 21.52 mm. height (in): 4-11/16 width (in): 2 length (in): 8' 2, 16' 4 glass thickness (in): 1/2 - 7/8 Surface: Mill finish, natural anodised, RAL glossy, RAL matt, RAL structured matt installation type: top mount number of drill holes per 2500 mm: 17 fixing type: concrete, steel Color Line: Yes drainage: Yes
