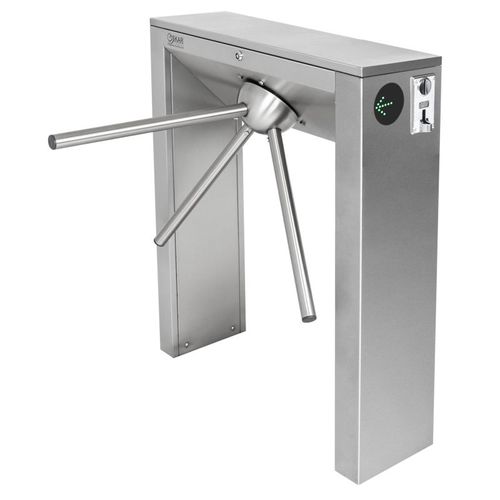

Tripod turnstile OTT 231 J

for access controlstainless steelfor public buildings

It is a coin operated tripod waist type turnstile, it is designed for direct toll entrances in public WC entrances, subway, entertainment centers, various social areas such as table d'hote or open buffet restaurants, etc. In the standard presentation, it sends only 1 contact with 1 coin or the specified coin, but this can be changed with special software depending on the customer's request, there is a coin holder on the right foot of the turnstile. This chamber can hold an average of 3,000 coins, but the chamber size can be increased optionally, (231 J) can operate indoors and outdoors for many years without any problems, it has a stylish and modern appearance thanks to its laser cut connection lines, it is easy thanks to the mounting kit camouflaged in the foot. and can be installed quickly, (231 J ) with its modern lines and aesthetic structure, it offers a very economical and stylish solution for welcoming and organizing, controlling and recording your visitors. ENERGY: 220 VAC 50/60 Hz Optional 110 VAC POWER CONSUMPTION: Maximum 25 Watts Minimum 10 Watts INDICATOR: The LED indicator glass is designed to be zero to the body surface, it refers to the system's access control. The LED indicator is offered as standard in all Oskar LED indicator turnstiles, and it can also be produced in different forms optionally. CONTROL: There is a dry contact data output in the passed direction. Dry contact for transition triggering can be easily connected to 12 VDC, 24 VDC or Various access control units and other peripherals.
