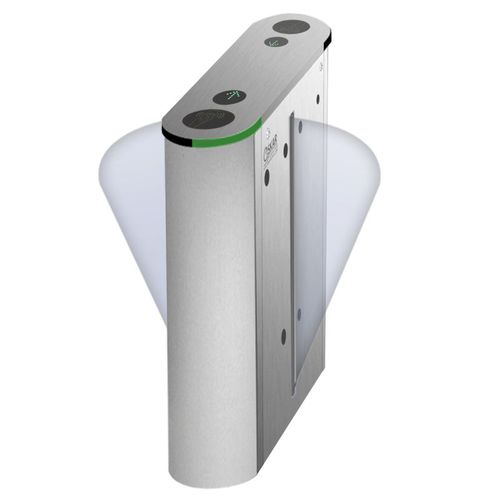

Half-height turnstile HCT 270 D

for access controlstainless steelfor public buildings

HCT 270 D Narrow frame It is our double-sided, double-winged and independent double-mechanism motorized optical fast access turnstile model, it has been specially designed for stylish places where visuality is at the forefront. ( 270 D ) is used to create more than one corridor, more than one ( 270 D ) double can be placed between two ( 270 S ) models, thus providing unlimited corridor creation. ( 270 D ) is the most stylish optical turnstile model you can find in the market, it can work for many years in indoor and outdoor environments without any problems, it has a stylish and modern appearance thanks to its ASI 304 quality stainless steel structure, it can be installed easily and quickly thanks to the mounting kit camouflaged in the case, (270 D) D ) with its modern lines and aesthetic structure, it almost decorates your space, at the same time it offers a very elegant solution for welcoming and organizing, controlling and recording your visitors. ENERGY: 220 VAC 50/60 Hz Optional 110 VAC. POWER CONSUMPTION: Maximum 25 Watt, Minimum 10 Watt. POWER SUPPLY: 220 Vac 50/60Hz swich mode adapter. POWER RATIOS: Maximum 50 Watts – Minimum 3 Watts. INTERNAL VOLTAGE: 24V DC maximum. WORKING TEMPERATURE: -20° to +55° C (up to -40° C with LTT HT heater option) WORKING DIRECTION: It is suitable for entry-exit from both directions. DRIVING: When the authorization signal comes, the DC Motor is activated, the wings come to the open position in an extremely silent way.
