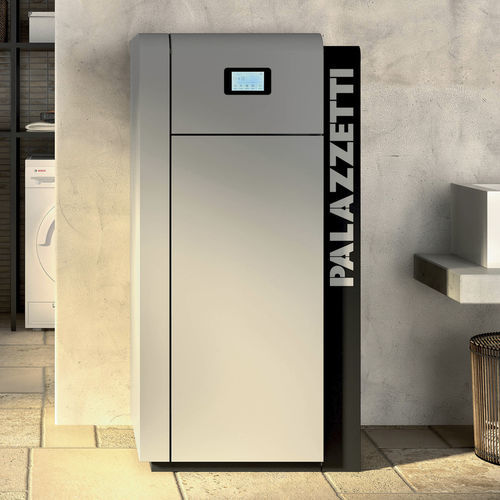

Pellet boiler JP 15

for heating onlyresidentialindoor

To find out more about the technology behind water-heating pellet boilers please go to the Heating Systems section. More in-depth info • sealed combustion chamber made by smoke tubes with turbolators • integrated hydronic unit composed of a circulation pump, a safety valve, a closed expansion tank and a manometer • integrated anti-condensation valve • graphic digital display with touch controls • operating hours can be programmed on a daily and weekly basis • integrated interface with external thermostat or for connection to the storage tank • designed for our Connection Box • Complete Burning System: total combustion stove with minimum ash production • Self Cleaning System: exclusive self-cleaning system for both the brazier and the exchange pipes • Star Valve pellet-feed system • combustion air ducted from outdoors Technical details Pellet burning Nominal heat output 16.05 kW Water heat output 15.31 kW Efficiency 96.11 % Maximum burn time 52 h Fuel hopper capacity 55 kg Hourly fuel consumption 1.05 - 3.48 kg/h Flue gas outlet ø 8 cm
