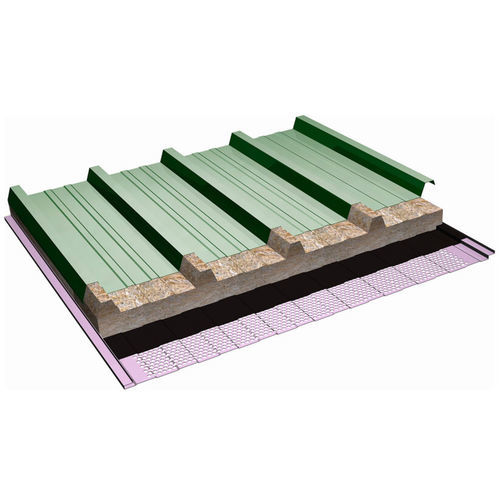

Roof acoustic sandwich panel AIS ROC 5G FONO

2 galvanized steel facesrock wool corefire-retardant

The AIS ROC PHONO 5G Panel is a roof sandwich panel, consisting of two galvanized steel plates, the upper one has 5 ribs (two lateral and one central plus 2 intermediate to provide greater mechanical resistance) and an inner, perforated, which are bonded in a discontinuous manufacturing process to a hard core of Rock Wool at a density of 100 kg/m3. The panel is designed for roofs with a minimum slope of 7%, although over 10% is recommended, on any metal, wood or concrete support. The flange of the integrated lateral overlap in a false rib forms the joint between two panels, enables rapid fitting, watertight assembly and good appearance of the roof. The inner side, perforated with R3T5 pattern, provides the panel with excellent sound absorption and prevents unwanted reverberations and echoes. We have all the auxiliary fastening elements required, screws, Capelotti joint covers and trims for the AIS ROC 5G Panel, compatible polycarbonate sheets for natural light and static aerators for ventilation. As with all our panels, the AIS ROC PHONO 5G Panel is customisable by selecting the type of cladding, colour and profile of the lower sheet. Please see the technical data sheet for further information.
