Exterior door BASIC

aluminiumsteelpolystyrene

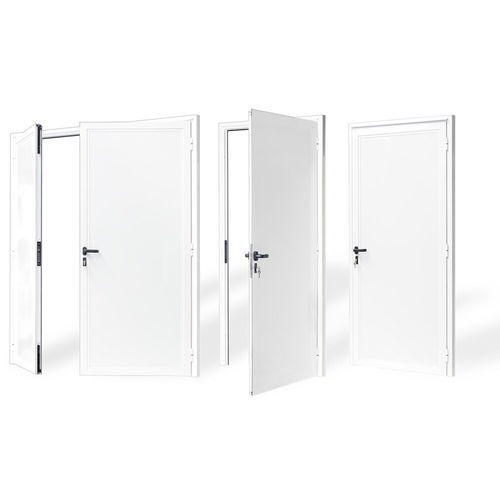

Panelled door in white painted aluminium, consisting of one or two leaves for fitting in mainly thin exterior walls, temporarily or permanently for new or existing structures. The door is ideal for both exteriors and interiors, smooth and pleasant in appearance, and is an economical solution for enclosures, combining lightness and quality. The door frame is 40 mm deep formed by an aluminium profile with a 35 mm exterior aluminium overlap, and 35 mm aluminium interior counterframe for a 40 mm panel. It is assembled with mitre joints and locking brackets. The panel is 40 mm thick, formed by a perimeter profile without a crossbar in aluminium, and assembled with mitre joints and locking brackets.The panelling is in pre-painted double steel sheet with a high-density polystyrene core, 30 mm or 40 mm thick. Fitted with hinges, lock and handle. Options Handle in white or black aluminium, or black PVC Lock with 1 or 3 bolts, cylindrical or with free/engaged Exterior or interior Opening inwards or outwards Inspection window (bull’s eye) Spring closing Special counterframe in aluminium for 60 mm panel. Ask for other measurements Technical sheet Consisting of extruded aluminium alloy profiles 6063 (EN573-3), supplied according to T5 (EN515), and tolerances for dimensions and thickness according to UNI EN 12020.2 and UNI EN 755.9. Surface treatment of the profiles is: anodised and painted to QUALANOD/QUALICOAT seal of quality from QUALITAL. The hinges are made in extruded, anodised and painted aluminium with a bolt in galvanized steel. The handles are made in white, lacquered aluminium
