Interior door STANDARD

aluminiumpolystyreneswing

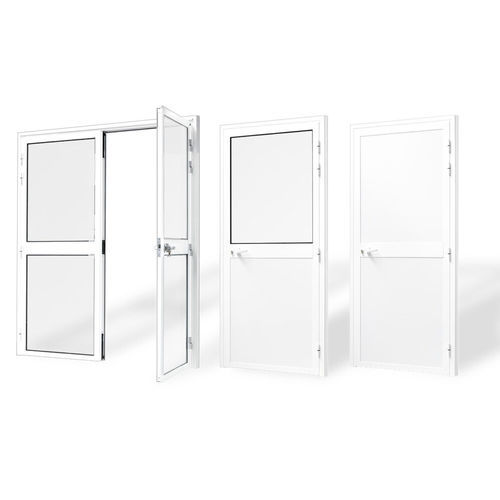

Panelled door in white painted aluminium, consisting of one or two leaves for fitting in mainly thin interior or exterior walls, temporarily or permanently for new or existing structures. The door is ideal for both exteriors and interiors, smooth and pleasant in appearance, and is an economical solution for enclosures, combining lightness and quality. As it is a panelled door, there is the option for solid, half- or fully-glazed. The frame is 44 mm deep formed by an aluminium profile with a 35 mm exterior aluminium overlap, and 35 mm aluminium interior counterframe for a 40 mm panel. It is assembled with mitre joints and locking brackets. The panel is 44 mm thick, formed by a perimeter profile and a crossbar in aluminium, and assembled with mitre joints and locking brackets.Fitted with hinges, lock and handle. The panelling is in pre-painted double steel sheet with a high-density polystyrene core, 40 mm thick both in the upper and lower parts. Alternatively, the panel can be substituted for single, safety or double glazing with gaps between 4 mm and 23 mm wide. Options Handle in white or black aluminium, or black PVC Lock with 1 bolt, cylindrical or with free/engaged Exterior or interior Opening inwards or outwards Inspection window (bull’s eye) Spring closing Special counterframe in aluminium for 60 mm panel. Ask for other colours Exterior grille in aluminium tubing in the glazed part. Technical sheet Extruded aluminium alloy profiles 6063 (EN573-3), supplied according to T5 (EN515), and tolerances for dimensions and thickness according to UNI EN 12020.2 and UNI EN 755.9.
