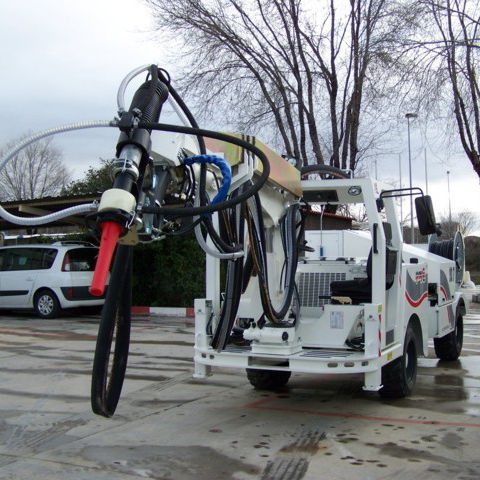

Concrete spraying machine SPRAYCON 20.9

concrete spraying machine
concrete spraying machine
concrete spraying machine
concrete spraying machine
concrete spraying machine
concrete spraying machine
Add to favorites
Compare this product


Characteristics

Options
for concrete

Description

Spraycon 20.9 is the smallest member in the shotcrete family but its features make it as big as the other models: Articulated chassis made on tubular structure frame, specially designed for heavy-duty and composed of a front chassis with cabin, on which is mounted diesel engine and hydraulic system, a rear chassis and central joint. Pumping unit with a theoretical output of 20 m3/h and a 9 m reach boom with protected hydraulic cylinders inside the tubes, together with its small dimensions, give it a high efficiency and large efficacy in all its maintenance works. We can offer another two versions of this unit: Spraycon 20.9 D with our unique Dual system and Spraycon 20.9 C with compressor onboard.os túneles). Engine: DEUTZ TD2012 L04 Engine power: 138 Hp Cabin: ROP - FOPS (Open) Weight: 6.480 Kgs. Measurements: 8.340mm x 1.750mm x 2.350mm. Internal steering radius: 4.650mm External steering radius: 6.850mm Vertical slope: 9 mts Horizontal scope: 9 mts Output concrete pump: 20 m3/h Shotcrete: Electric / Diesel Movement: Diesel
