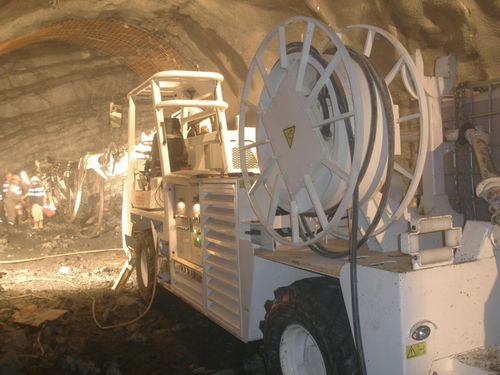

Concrete spraying machine SPRAYCON 30.14

Spraycon 30.14D+C is one of the most advanced large-range shotcrete robots in the market. Provided with our unique DUAL system standard from factory which allows working either with diesel or electrical engine by turning a knob to the desired position, and compressor onboard which allows a more independent work without the need of external equipment, aid, or connections. The unit is produced with a robust chassis made on tubular structure frame, specially designed for heavy-duty, pumping unit with a theoretical output of 30 m3/h and a 14m reach cutting-edge boom with protected hydraulic cylinders inside the tubes, together with its small dimensions, give it a high efficiency and large efficacy in all its maintenance works. We can offer standard version of this unit, with DUAL system incorporated but without compressor onboard: Spraycon 30.14 D Engine: DEUTZ 2012 Engine power: 138 Hp Cabina: ROP - FOPS Weight: 15.500 Kgs. Measurements: 7.200mm x 2.545mm x 3.000mm Internal steering radius: 2.250mm External steering radius: 5.800mm Output concrete pump: 30 m3/h Shotcrete: Electric / Diesel Max. spraying reach from crown gear: 16 mt
