Wall formwork LOGO.S
modularmetal

wall formwork
wall formwork
wall formwork
wall formwork
wall formwork
Add to favorites
Compare this product


Characteristics

Type
modular
Material
metal
Applications
wall

Description

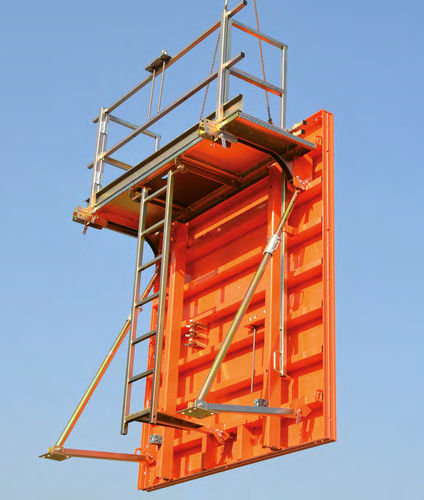

Panels with foldable, integrated working platforms and accessories → time-saving during assembly Inside corner post 25 x 25 x 270 cm to form rectangular wall constructions Walls up to 265 cm height with only 0,3 ties/m² in concrete, due to tie point at edge of the panel frame No impressions of bolts or rivet heads (perfect concrete finish) Stepless height offset of panels is possible easily due to clamp connection Completely compatible with LOGO.3 Large-size system for residential and commercial buildings, industrial construction, civil engineering, reservoir construction. Panel widths - 240 / 135 / 90 cm Panel height - 270 cm Frame depth - 35,5 cm (incl. folded platform) Steel sheet - 5 mm steel or magnetic stainless steel sheet Max. concrete pressure - 100 kN/m² according DIN 18218 Tolerances of deflection - According to DIN 18202, table 3, line 6
