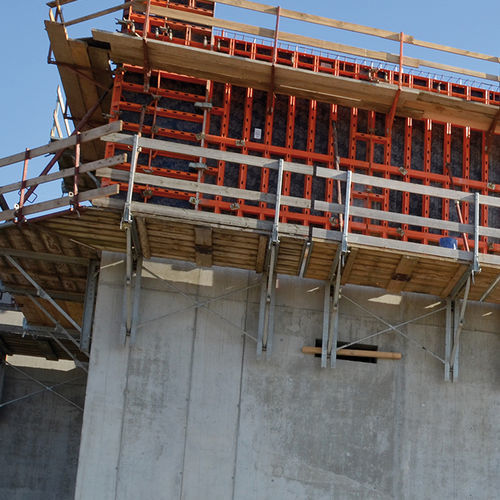

Work platform KBK 180

for constructionoutdoormodular

• with all formwork types compatible • platform folds up for low transport volume Work and jacking scaffold, which comes fully assembled and ready to use on-site. Platform width - 180 cm Platform length - 295 cm; corner platforms: 390 cm Bracket spacing - 200 cm Maximum loads - 3 kN/m² as climbing platform carrying formwork - 4,5 kN/m² as working platform without formwork - 2 kN/m² as working and safety platform with drop-in loop according to DIN 4420 Anchoring - Clevis shoe M24 with screw anchor - Clevis shoe M30 with anchor cone - Drop-in loops according to DIN 4420 Accessories - Corner platforms, single brackets, connection part for drop-in loops, clevis shoe M30, bracket extensions, railing posts for lateral protection, suspended scaffold, traps, Drop-in loops as per DIN 4420
