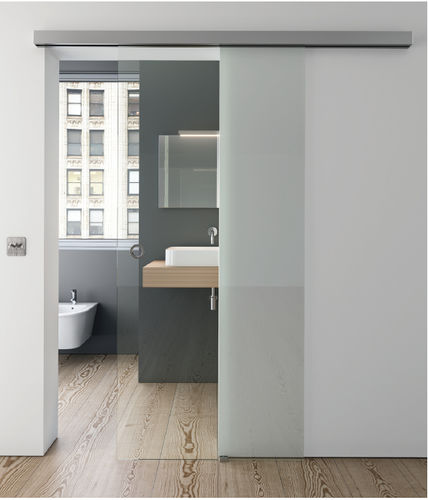

Aluminum sliding system EVERYSPACE

glass doorwooden doorwall-mounted

High-quality surfaces and clear lines characterize the design of the new EVERYSPACE interior sliding door system. But also the inner values are convincing. All components are made of high-quality materials in Germany and are extremely robust and durable. The combination of design, quality and ease of installation will convince you. features and selected highlights high quality production – for long durability guide rail made of high-strength aluminum alloy hardware and accessories made of solid highquality zinc die-cast rollers made of durable fiberglass-reinforced polyamide optimal surface design with continuous appearance from the profile to the cover cap finish: aluminium gloss anodized (E6EV1), black anodized (E6C35), stainless steel optic (E123) glass thicknesses: 8 – 12.76 mm can be installed with or without Softstopp up to 100 kg door panel weight max. door width 1300 mm single or double panel doors possible modular construction easy to install and maintain operation of the glass thickness regulator With the patent-pending adjustment option, the glass thickness can be easily regulated. (two adjustment crowns per carriage). There is no need to replace inserts or screws. • glass thicknesses Mono ESG: 8/10/12 mm • glass thicknesses LSG made of FTG: 8,76/10,76/12,76 mm height adjustment The height adjustment of the door panel is done by means of an excenter in the carriage and can be adjusted by +/–3 mm. Before hanging the door, this must be set to zero.
