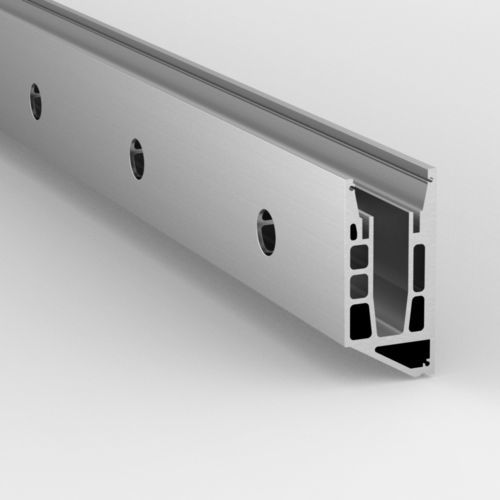

Metal fastening profile CP-1443

for balcony

for balustrade and staircase installation fascia mounted on balconies and staircases with two or more glass panels, no connection of the handrail to a substructure is necessary trouble-free outdoor applications made possible by a thick anodized protective layer. applicable for French balconies glass panel widths up to 6 m possible glass panel heights up to 1500 mm, applicable for balconies over 12 m glass panels with holes for handrail supports are permissible glass insert depth = 100 mm glass type = LSG with FTG (FTG-H) glass thicknesses = 16,76/ 17,52/ 20,76 and 21,52 mm glass panels are linear supported customized cutting available upon request. connection of two profiles with connector stud 1440-3VA.
