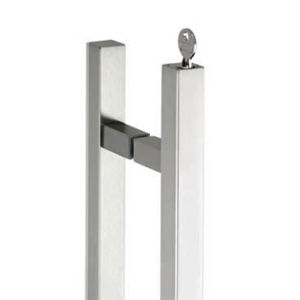

Door pull handle KLO.QV1.0000

stainless steelcontemporarywith lock

Dimensions mm (Inches): lever 25x25 (1x1"), total length B = 1150 (45-1/4"), centre to centre distance A = 1000 (39-3/8"), centre to centre distance D = 75 (2-15/16"), lever overhang 70 (2-3/4"). Single pull handle with lockset with key to be inserted from above. Round European cylinder. Floor bolt. In AISI 316L stainless steel corrosion resistant also outdoors. Supports 20x20 (25/32x25/32"). Including traditional pin tumbler lock key cylinder. Special keying systems for cylinders available on request. Cut resistant bolt with rotating protective sleeve in stainless steel. Bolt extension adjustable up to 30 (1-3/16"). Dust-proof bolt socket in nickel-plated brass included head Ø 24 (15/16"), housing hole Ø 18 (23/32"), depth 28 (1-1/8"). Can be installed on aluminium, glass, wooden, PVC doors and mixed systems using the PBA fixing kit, to be ordered according to the material. Protection accessories for glass fixing included. Anti break-in fixing system. PBA D-type fixing. Standard satin finish (bright finish and other finishes on request). Stainless Steel AISI 316L .44 - SATIN .43 - BRIGHT .40 - POWDER COATED Black .31 - POWDER COATED White 9010 .32 - POWDER COATED Grey .38 - POWDER COATED Champagne .39 - POWDER COATED Bronze .41 - POWDER COATED Silver .99 - POWDER COATED
