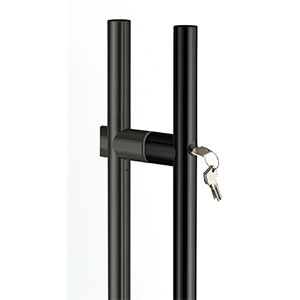

Door pull handle KLA.Y02.0000

aluminumcontemporarywith lock

Dimensions mm (Inches): lever Ø 37 (1-29/64"), total length B = 1250 (49-1/4"), centre to centre distance A = 1000 (39-3/8"), centre to centre distance D = 75 (2-15/16"), centre to centre distance E = 175 (6-7/8"), lever overhang 85 (3-11/32"), maximum overhang 97 (3-7/8"). Pull handle with lockset for European profile cylinder half height with floor bolt. Knob side bolt. In anodized aluminium EN AW 6060. Oval top support 46x35 (1-13/16"x1-3/8"), bottom support Ø 35 (1-3/8"). Suitable for housing a European profile cylinder key + spigot Ø8x7 (30 key side, 10, 25 spigot side). Including flat horizontal position key cylinder with extended collar and with security card. Hidden cylinder with anti-drill defender for horizontal position key, available with vertical slot on request. Special keying systems for cylinders available on request. Cut resistant bolt with rotating protective sleeve in stainless steel. Bolt extension adjustable up to 30 (1-3/16"). Inside manual opening/closing device according to ADA requirements. Dust-proof bolt socket in nickel-plated brass included head Ø 24 (15/16"), housing hole Ø 18 (23/32"), depth 28 (1-1/8"). Can be installed on aluminium, glass, wooden, PVC doors and mixed systems of any thickness to be indicated when ordering. Protection accessories for glass fixing included. Standard finish: champagne, bronze and black anodized satin finish (other finishes on request). Anodizing thickness Class 15 (15-17 micrometres) suitable for outdoor applications according to UNI standard 3952/66. Anodizing in compliance with the QUALANOD EURAS- EWAA quality label directives. Reference standards: ADA, UNI 10681. Aluminum
