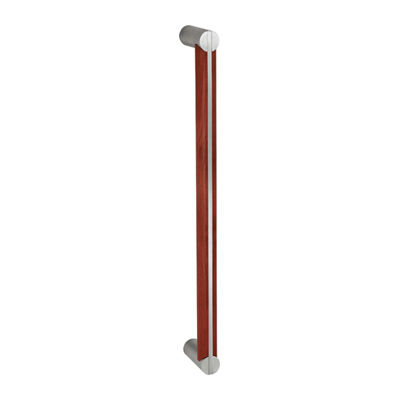

Dimensions: A = 200 mm (7 - 7/8"), B = 220 mm (8 - 21/32"), Ø 20 mm (25/32"), D = 60 mm (2-23/64") Pull handle in stainless steel and wood. U-shaped with square corners. Handle with round profile in Ø 20 mm (25/32") wood with central insert 6 mm (1/4") thick in AISI 316 stainless steel. Supports centre to centre distance A = 200 mm (7 - 7/8"). Vertical overall dimension B = 220 mm (8 - 21/32"). Overhang D = 60 mm (2 - 23/64"). Round supports Ø 20 mm (25/32") in AISI 316L stainless steel with internal core in grey varnished die-cast aluminium. Can be installed on aluminium, glass, wooden, PVC doors and mixed systems using the pba fixing kit, to be ordered according to the material. Protection accessories for glass fixing included. PBA D-type fixing. Standard satin steel finish. Bright finish and other finishes on request. Finish Wood: Wenge, Ash or Mahogany; to be specified when ordering.
Stainless Steel AISI 316L + Wood
.52 - Stainless Steel AISI 316L Satin + Bleached Oak
.46 - Stainless Steel AISI 316L Satin + Wenge
.4A - Stainless Steel AISI 316L Satin + Black
.47 - Stainless Steel AISI 316L Satin + Ash
.48 - Stainless Steel AISI 316L Satin + Mahogany
.49 - Stainless Steel AISI 316L Bright + Wenge
.3A - Stainless Steel AISI 316L Bright + Black
.50 - Stainless Steel AISI 316L Bright + Ash
.51 - Stainless Steel AISI 316L Bright + Mahogany
.40 - POWDER COATED Black
.31 - POWDER COATED White 9010
.32 - POWDER COATED Grey
.38 - POWDER COATED Champagne
.39 - POWDER COATED Bronze
.41 - POWDER COATED Silver
.99 - POWDER COATED
