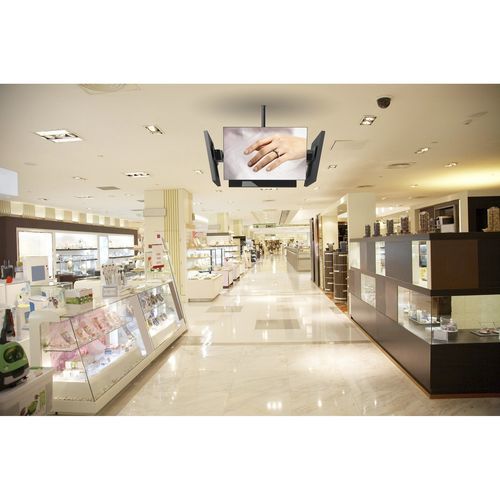

The DST975-4 Multi Display Ceiling Mount includes telescoping arms for holding four displays evenly spaced in a square or rectangular configuration, helping you create the ideal multi display ceiling mounted solution. Each arm's adjustable depth allows the installer to set the spacing between each display to meet your application’s needs. With 36°degrees of swivel, and °to 2°degrees of tilt, this mount creates the perfect viewing angle for any application. The mount has been designed with superior aesthetics in mind and provides a bottom cover, resulting in sleek and clutter-free cable management throughout the entire solution.
Each display swivels independently +-20 ° for perfect positioning
Tri and Hex options also available
Bottom cover provides superior aesthetics by hiding cables from view
Arms telescope to allow for the desired display spacing
0° to 20° of tilt and 360° of swivel at time of installation
Universal mount fits displays with mounting patterns up to 730 x 405mm (28.75"W x 15.95"H)
Minimum to Maximum Screen Size
37" to 75"
Weight Capacity
500lb (227kg)
Color
Black
Finish
Powder Coat
Security Features
Non-Security Hardware
Tilt
+20
Product Dimensions
51.2 X 21.8 X 51.2" (1300 X 554 X 1300mm)
