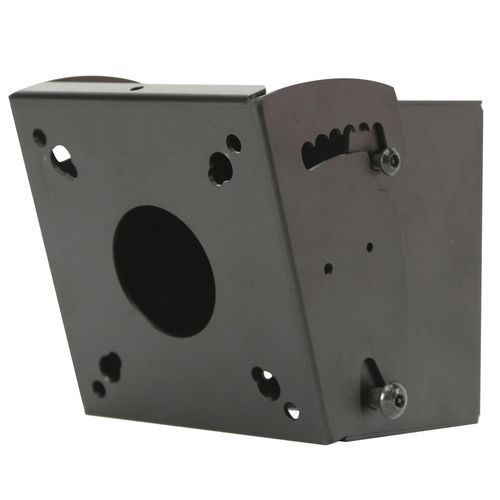

The SmartMountTM PLCM-2 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV’s AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 2° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.
Ceiling plate and extension columns required (sold separately)
VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
Additional display mounting adaptor plates available (sold separately)
PLCM-2 compatible with standard 1.5" NPT pipe (sold separately)
-5° to 20° adjustable tilt and 360° swivel
Minimum to Maximum Screen Size
10" to 90"
VESA Pattern
100 X 100, PLP
Weight Capacity
150lb (102kg)
Color
Black
Finish
Powder Coat
Security Features
Secuirty Hardwareecurity Hardware
Tilt
20
Swivel Yaw
360
Product Dimensions
5.60 x 5.53 x 3.54" (142 x 140 x 90mm)
