The robust panel for smooth fairfaced concrete surfaces

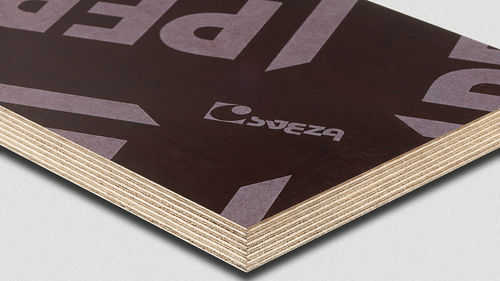

The RusPly formwork panel is robust and has been designed for highest requirements. It consists of crosswise bonded birch veneers, is BFU 100 bonded and used both for walls and for slabs. The RusPly has on both sides a 220 g/m² filmfaced coating from phenolic resin and can be used both as loose formwork panel and system panel.
Type of wood: Russian birch plywood throughout
Coating: on both sides about 220 g/m² phenolic resin coating, dark brown
Bonding: DIN 68705 Part3, BFU 100, EN 314-2 Class 3
Application: wall and slab formwork panel for concrete finishes with highest requirements, fairfaced concrete finishes
Nominal ThicknessDimensionWeightPacking Unit
18 mm1220 x 2440 mm12,78 kg/m²33 pieces
21 mm1250 x 2500 mm14,90 kg/m²25 pieces
21 mm1500 x 2500 mm14,90 kg/m²25 pieces
21 mm1500 x 3000 mm14,90 kg/m²25 pieces
