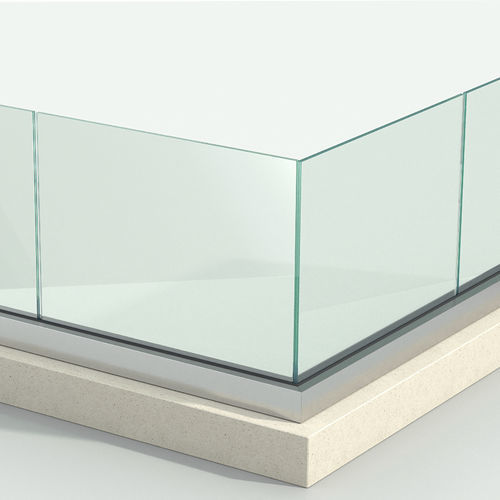

Frameless railing IRIS A4

aluminumglass paneloutdoor

It is one of the frameless glass railings of the heavy-duty line which is certified by the Giordano Institute for 2KN resistance. Recommended to be used for glass heights up to 105 cm. Glass with thickness 66.1 mm, 88.1 mm and 1010.1 mm Glass must be laminated or tempered + laminated at least. The fixing of the glass is done through posts with mechanical grip (tightening with screws). Posts are provided in standard dimensions with lengths of 150 mm and 200 mm. Posts with the length of 200 mm are used at the ends of the glass, while posts with the length of 150 mm are used in the middle of the glass. For the IRIS A4 glass wall system, a wide range of longitudinal closing caps are offered: as a standard "L" shaped cap, a cap when the railing is embedded in concrete (partially or totally), a conical cap, a conical cap with strips of different widths etc. Each of the lid options has its own closing plug.
