Frameless railing IRIS CC1

aluminumglass paneloutdoor

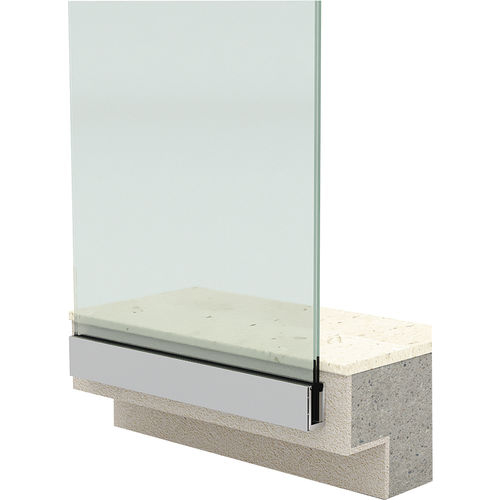

The IRIS CC1 glass railing has a profile height of 120mm and is applied in cases of lateral capture. It is one of the glass walls of the heavy-duty line. Recommended to be used for glass heights up to us 110 cm. Glass with 88.1 mm, 1010.1 mm and 1212.1 mm thickness. Glass must be at least laminated or tempered + laminated Fixing of the glass is done with adjustable aluminum accessory and EPDM rubbers (3 accessories for each ml). Up to 2 KN. The finish (joint between the glass and the aluminum profile) of the glass walls type "C" is usually done with sponge wick + structural silicone or with EPDM rubbers. In many cases, the finishing is done with bandages with painted aluminum sheet. Fixation of the glass is done with EPDM rubbers and adjustable aluminum accessories (4 accessories for each ml). Up to 3 KN.
