Installation ballast PRIMAVISION FOR SDW-TG

PV

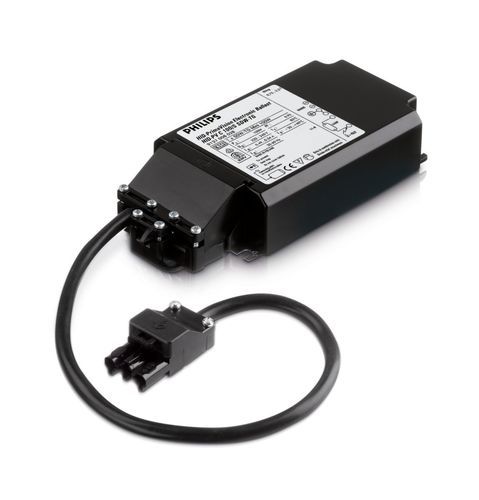

PrimaVision for SDW-TG is a one-piece HID electronic gear for SDW-TG (mini White SON) lamps, available for 50 W and 100 W. It provides stable lamp operation with support for high ambient and Tcase temperatures and includes lamp end-of-life detection.

Benefits

• Optimal lamp performance due to minimal lamp power tolerance
• Reduces colour differences between lamps and initial lumen spread
• Performance independent of mains voltage

Features

• Available as Standard (/S) version for use in a luminaire, or with separate strain relief for independent use on a (false) ceiling
• Minimal lamp power spread
• Lamp end-of-life detection
• Support for high Tambient and Tcase temperatures
• Long lifetime of 40,000 hours

Applications

• Shop lighting to create a warm atmosphere (e.g., furniture shops)
• Accurate display of fresh goods (e.g., butcher's shops, bakeries, florists)
• Indoor use only

Technical specifications

• Product family: PrimaVision for SDW-TG
• Compatible lamps: SDW-TG (mini White SON)
• Supported lamp powers: 50 W and 100 W
• Available product variant listed on page: HID-PV 100 /S SDW-TG 220-240V 50/60Hz
• Order code (product listing): 913700656566
• Internal/product code shown: 88754900
• Country / locale of page: en-GB
• Brand: Philips lighting
