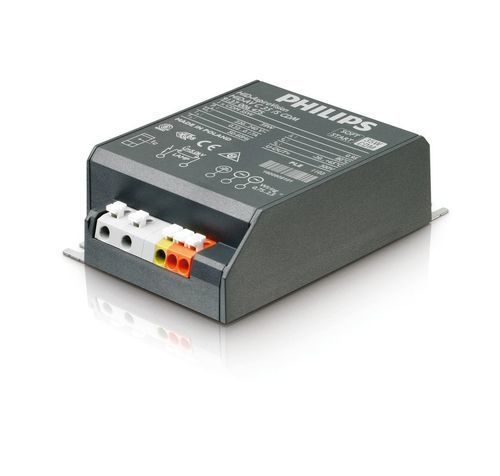

Installation ballast AspiraVision Compact

AspiraVision Compact for CDM is a compact HID electronic gear family designed for optimal performance of 35, 50 and 70 W CDM lamps. It is lightweight, easy to use and includes an integrated switching function that provides flexibility by enabling three different wattage choices in a single driver.

Benefits

• SOFT START allows installation with fewer circuit breakers; loop-through capability enables faster, cost-efficient installation.
• Extended service life.
• Selectable 35, 50 or 70 W via the integrated switch, avoiding driver replacement when wattage requirements change.

Features

• SOFT START (soft-start functionality).
• Loop-through available in the independent version.
• Improved thermal performance for enhanced reliability.
• Low electromagnetic interference (EMI).
• Voltage drop detection.

Applications
Accent and decorative lighting for shops, public spaces, lobbies and offices. Suitable for indoor use only.

Technical specifications

• Family name: AspiraVision Compact for CDM.
• Supported lamp powers: 35 W, 50 W and 70 W CDM lamps.
• Integrated switching function: selectable 35 / 50 / 70 W.
• Soft start: yes.
• Loop-through: available in independent version.
• Improved thermal performance for extended reliability.
• Low electromagnetic interference.
• Voltage drop detection included.
• Variants:
  • HID-AV C 35-70 /S CDM 220-240V 50/60Hz — order code: 913700683866 — product code: 23310700.
  • HID-AV C 35-70 /I CDM 220-240V 50/60Hz — order code: 913700684066 — product code: 23312100.
