Wall-mounted display panel EDISPLAY

indooroutdoorcommercial

Overview
eDisplay is an intelligent interaction system that integrates digital display technology directly into building materials. It is designed for embedding in walls, façades, commercial interiors and public surfaces to unify content visualization and spatial interaction where architecture meets digital intelligence.

Advantages

• Architectural integration — Seamless material-display embedding turns stone, wood or masonry façades into 4K displays that are visually neutral when powered off.
• Invisible design — Display units are fully embedded within building finishes with no exposed elements, replacing conventional LED screens while preserving the architectural surface.
• Commercial potential — Indoor applications transform retail and hospitality walls into dynamic media surfaces (reported increase in dwell time up to 40%), while outdoor façades can operate as 2,000‑nit digital billboards to generate advertising revenue and enhance asset value.
• Solar‑Storage‑Display integration — When combined with the eBIPV Nubestone Curtain, enables a fully solar-powered solution with integrated generation, storage and display management.

Texture selection

• eDisplay Curtain Stone Ridged New White Sesame — Sizes (mm): 960×320, 640×320, 1600×480; eDisplay: 10 pieces (red zone); eCovering: 4 pieces; custom dimensions available; customizable curved surfaces; color options configurable.
• eDisplay Curtain Marble Sahara Noir — Sizes (mm): 960×320, 640×320, 1600×480; eDisplay: 10 pieces (red zone); eCovering: 4 pieces; custom dimensions available; customizable curved surfaces; color options configurable.
• eDisplay Curtain Marble Andes Gold — Sizes (mm): 960×320, 640×320, 1600×480; custom dimensions available; customizable curved surfaces; color options configurable.
• eDisplay Curtain Marble Andes Light Brown — Sizes (mm): 960×320, 640×320, 1600×480; custom dimensions available; customizable curved surfaces; color options configurable.
• eDisplay Curtain Wood Caesious — Sizes (mm): 960×160, 640×160, 1600×480; custom dimensions available; customizable curved surfaces; color options configurable.
• eDisplay Curtain Wood Light Brown — Sizes (mm): 960×160, 640×160, 1600×480; custom dimensions available; customizable curved surfaces; color options configurable.
• eDisplay Curtain Cowhide HB01 — Sizes (mm): 640×160, 960×160, 960×320, 1280×640, 1920×640; custom dimensions available; customizable curved surfaces; color options configurable.

Installation (Dry-hanging installation)

• Measure the wall — assess the installation area and mark positions for brackets and mounting hardware.
• Install brackets — securely fix support brackets compatible with the selected eDisplay modules.
• Mount eDisplay components — hang, align and fasten components with appropriate fixings.
• Seal joints — apply matching sealant or trim elements to achieve a continuous, seamless surface.
• Connect cables — connect power and signal lines following installation guidelines to ensure stable operation.
• Test & debug — perform full system testing, calibration and commissioning to verify display performance.

Applications

• Building exterior façades — convert façades into high-definition digital surfaces that integrate architectural character with visual communication.
• Public walls — create interactive public installations and information surfaces in transit hubs, plazas and civic buildings.
• Commercial spaces — enable immersive brand experiences in retail, showrooms and exhibition environments.
• Shops — activate storefronts and interior feature walls as dynamic promotional surfaces.

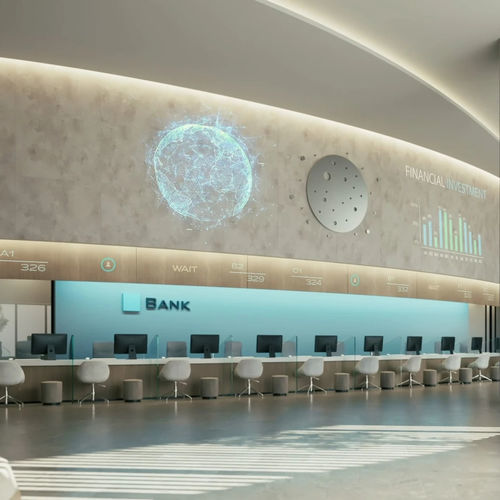

• Hotels — integrate digital surfaces into lobbies, corridors and feature walls to enhance guest experience and signage.
• Restaurant interiors — combine artistic visuals and brand storytelling to shape atmosphere and dining experience.

Technical specifications

• Module size — Indoor: 640×320 / 960×320 / 1280×640 / 1280×480 mm; Outdoor (Night Use Only): 960×320 / 960×480 / 1280×640 / 1280×480 mm; Outdoor (Day & Night Use): 640×320 mm.
• Module thickness — Indoor: 50 mm; Outdoor (Night Use Only): 50 mm; Outdoor (Day & Night Use): 50 mm.
• Resolution — Indoor: P2.5; Outdoor (Night Use Only): P4; Outdoor (Day & Night Use): P6.67.
• Pixel density — Indoor: 160000 dots/m²; Outdoor (Night Use Only): 62500 dots/m²; Outdoor (Day & Night Use): 22500 dots/m².
• White balance brightness — Indoor: ≥800 cd/m² adjustable; Outdoor (Night Use Only): 1000–2000 cd/m²; Outdoor (Day & Night Use): 4000–5000 cd/m².
• White balance color temperature — Indoor: 3000–15000K; Outdoor (Night Use Only): 3000–15000K; Outdoor (Day & Night Use): 6500–8000K.
• Power consumption — Indoor: Peak ≤759W/m² / Average ~251W/m²; Outdoor (Night Use Only): Peak ≤600W/m² / Average ≤200W/m²; Outdoor (Day & Night Use): Peak 520W/m² / Average 173W/m².
• Refresh rate — Indoor: 50–60 Hz; Outdoor (Night Use Only): 50–60 Hz; Outdoor (Day & Night Use): 60 Hz.
