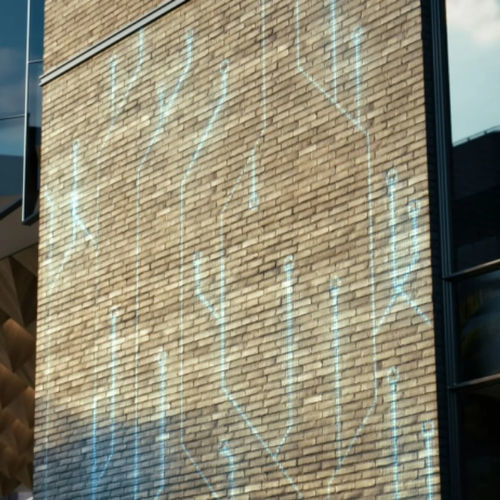

Wall cladding with photovoltaic panel ESOLARFACADE

aluminumfor facadefree-standing

Overview
eSolarFacade by PHOMI HOLDING is a next-generation building-integrated photovoltaic (BIPV) facade system that embeds solar energy generation directly into exterior building surfaces. It converts traditional envelopes into high-performance solar facades that produce clean electricity while preserving architectural aesthetics and design flexibility. The solution is engineered for use beyond glass curtain walls, enabling photovoltaic integration across a wide range of building types and surface materials.

Advantages

• Uncompromised aesthetic freedom: Achieve authentic stone, wood or brick appearances on facades while integrating renewable energy generation.
• Extends BIPV beyond glass: Designed for the majority of buildings without curtain-wall glazing, unlocking solar potential on diverse façade types.
• Higher energy yield & lower carbon: Produces over 60% more power than standard 60% transmittance glass BIPV and reduces product carbon footprint by 54.6%.
• Intelligent multi-functional building skin: Optional display integration, enhanced thermal insulation and negative-ion air purification convert the envelope into an active, multifunctional façade.

Texture selection (examples)

• eSolarFacade (eBIPV) Stone Ridged Andes White — Specifications (mm): 1140×570; custom dimensions available; customizable color options.
• eSolarFacade (eBIPV) Stone Ridged Andes Yellow — Specifications (mm): 1140×570; custom dimensions available; customizable color options.
• eSolarFacade (eBIPV) Stone Ridged Plain White — Specifications (mm): 1140×570; custom dimensions available; customizable color options.
• eSolarFacade (eBIPV) Stone Ridged Gold Sesame — Specifications (mm): 1140×570; custom dimensions available; customizable color options.
• eSolarFacade (eBIPV) Stone Ridged Dandy Grey — Specifications (mm): 1140×570; custom dimensions available; customizable color options.
• eSolarFacade (eBIPV) Stone Ridged Sand Beige — Specifications (mm): 1140×570; custom dimensions available; customizable color options.
• eSolarFacade (eBIPV) Stone Ridged Terracotta Clay — Specifications (mm): 1140×570; custom dimensions available; customizable color options.

Applications

• Industrial park exterior walls — suitable for shopping centers, offices, museums, schools and public buildings; balances aesthetics, durability and sustainability.
• Hotel and hospitality spaces — transforms interior and exterior surfaces with realistic natural textures and integrated renewable energy.
• Residential villas — enables sustainable, energy-producing façades for private housing.
• Commercial building exterior walls — creates energy-efficient commercial facades with integrated photovoltaic technology.

Installation & Maintenance
Installation: Use a laser rangefinder and digital level for wall positioning. Secure a custom keel with mechanical anchoring, align panel slots with the keel for initial fixation, then fine-tune and reinforce with specialized connectors to ensure precision and efficiency. Installation diagrams and visual guides are provided for panel alignment and fixation.

Maintenance: Annual cleaning recommended depending on surface conditions; use mild soap and water and avoid organic solvents. Inspect façades every five years (panels, seals, connectors) and repair or replace damaged panels, sealants, hardware and structural components. Regularly check and maintain drainage systems.

Specifications

• Maximum Power (Pmax): 59.23 ~ 166.62 W
• Maximum Power Voltage (Vpmax): 20.70 ~ 29.22 V
• Maximum Power Current (Ipmax): 2.86 ~ 5.70 A
• Open Circuit Voltage (Voc): 24.18 ~ 35.52 V
• Short Circuit Current (Isc): 3.15 ~ 6.17 A
• Module Efficiency: 9.12 ~ 17.63 %
• Maximum System Voltage (VDC): 1000 V (TUV/CE/CB/CQC/UKCA)
• Maximum Fuse Current: 25 A
• Product size: 1140 × 570 mm; custom dimensions available
• Surface finish: Stone ridged Econiclay® photovoltaic facade finish
• Application: Exterior facade and building-integrated photovoltaic envelope
• Operating temperature: Designed for exterior architectural environments
• Thermal performance: Supports facade insulation enhancement when integrated with wall systems
• Warranty support: Project-specific warranty terms available on request
• Product limited warranty: 25 years
