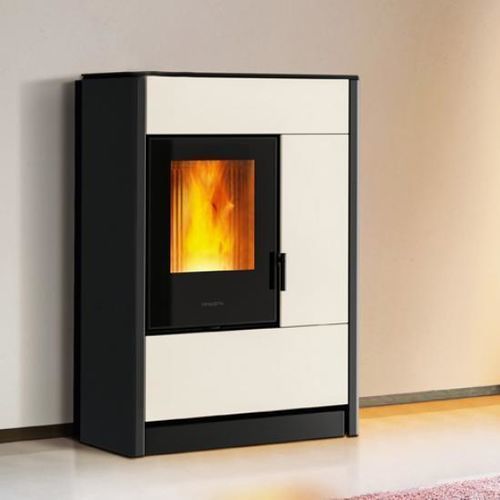

Hybrid heating stove E228 D-S

woodpellet4 kW

Product Overview

• Modern design pellet-wood hybrid stove with majolica cladding available in six colours.
• 5 Star certified.
• The E228 D-S combines the convenience of pellets with the magic of a wood flame.
• Characterised by the automatic fuel change, it has a side pellet tank with a capacity of 40 kg that guarantees a long autonomy.
• With its 8 kW it is ideal for heating rooms of up to 85 m².

Available Colours

• Marrone Tenné - Nero Opaco
• Bianco Calce
• Rosso Lava - Nero Opaco
• Nero Opaco
• Bianco Calce - Nero Opaco
• Verde Mirto - Nero Opaco

Technical Data
Energy efficiency class | A+ (G → A++) | A+ (G → A++) | A+ (G → A++) | A+ (G → A++)
Rated output | 8.2 kW | 4.1 - 8.2 kW | 8.0 kW | 3.9 - 8 kW
Efficiency | 88 % | 88 - 90 % | 86 % | 85 - 87 %
Heatable volume | 140 - 235 m³ | 140 - 235 m³ | 135 - 230 m³ | 135 - 230 m³
Pellet consumption | 2.24 kg/h | 0.92 - 1.9 kg/h | 2.24 kg/h | 0.92 - 1.86 kg/h
Tank capacity | - | 40 kg | - | 40 kg
Ø Flue outlet | 150 mm | 150 mm | 150 mm | 150 mm
Product weight: 306 kg
Product measures (LxPxH): Please refer to product sheet

Main Features

• Hermetic: Airtight firebox also for passive houses. Combustion air from the outside.
• Multicomfort Plus
• Programming: Timer-controlled thermostat with multiple programming levels.
• Utter silence with natural draught.
• Radiant Majolica: Combustion chamber that makes the Majolica radiant, even shortly after the switch off.
• Pellet quality system: Pellet Quality System to optimise combustion.
• Fuel level sensor: Pellet hopper level sensor, warning for reloading.
• Ash box: Removable ash pan.
• Keeping warm with the utmost tranquillity.
• Remote control LCD: Remote control with touch LCD and Multicomfort function.
• Natural heating: Heating of the environment through natural convection.
• Wall attached: Installation flush with wall.
• Two fuels, a single stove - Infinity Line.
• Majolica: Cladding entirely made of Majolica.
• APP WI-FI bluetooth: WiFi equipment for remote control, or via Bluetooth from home, with My Piazzetta App.

Optional

• Multifuoco System

Fuel Types

• Wood: Tradition and innovation to enjoy classic wood fire.

Characteristics / Technical Specifications

• Hybrid stove: pellet and wood operation
• Automatic fuel change
• Side pellet tank: 40 kg capacity
• Rated output: up to 8.2 kW
• Heatable area: up to 85 m²
• Energy efficiency class: A+
• Efficiency: up to 90%
• Flue outlet diameter: 150 mm
• Product weight: 306 kg
• Majolica cladding in six colours
• Remote control LCD
• WiFi and Bluetooth app control
• Hermetic firebox
• Natural convection heating
• Removable ash pan
• Pellet quality system
• Fuel level sensor
• Wall-attached installation
