Overview

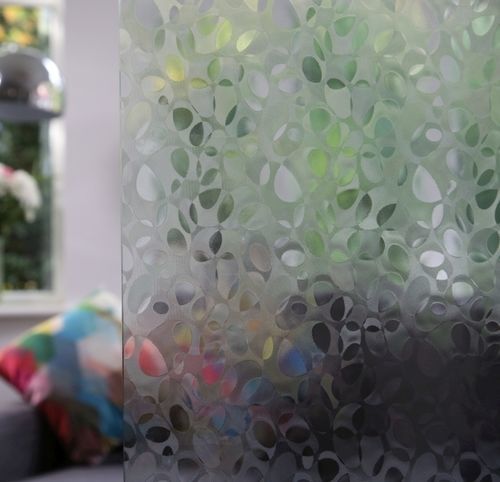

Pilkington Texture Glass is a rolled patterned glass with a design impressed on one surface, providing both obscuration and decorative effect. Patterns are classified by obscuration on a scale from 1 (least obscuring) to 5 (most obscuring). Available in 18 designs (12 in the main range and 6 replacement patterns), the product transmits diffused light while preserving privacy.

Features & Benefits

• Five levels of privacy, graded 1 (least obscuring) to 5 (most obscuring).
• 18 pattern options (12 main range, 6 replacement range).
• Available through local glaziers and glass merchants.
• Offered in monolithic, toughened or laminated forms (depending on pattern) for safety and security.
• Can be used as single glazing or incorporated into Insulating Glass Units for thermal and acoustic performance.
• Thicknesses: 4 mm, 6 mm, 8 mm and 10 mm (pattern dependent).

Applications
Pilkington Texture Glass is translucent, transmitting diffused light while maintaining privacy. It is suited to commercial, industrial and residential projects for privacy glazing and decorative uses such as doors, internal partitions and balustrades. Patterns allow combining functional requirements with architectural design, and glasses can be supplied toughened or laminated and used within Insulating Glass Units for added insulation or noise reduction.

Technical specifications

• Product: Rolled patterned decorative glass with one patterned surface.
• Obscuration classification: Grades 1 to 5 (1 = least obscuring, 5 = most obscuring).
• Designs: 18 patterns (12 main range, 6 replacement range).
• Forms available: Monolithic, toughened, laminated, and as part of Insulating Glass Units.
• Thicknesses available: 4 mm, 6 mm, 8 mm, 10 mm (depending on design).
• Typical applications: Privacy glazing and decorative uses—doors, internal partitions, balustrades, commercial, industrial, residential buildings.
• Light transmission: Translucent; transmits diffused light while maintaining privacy.
• Safety/Security: Can be toughened or laminated for enhanced safety and security performance.
