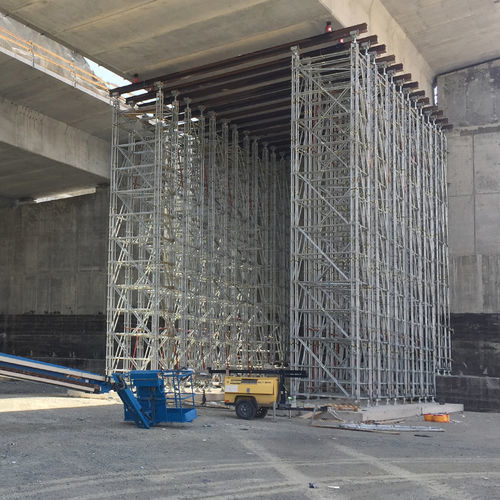

Steel shoring tower MP HDmodularheavy-duty
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Options
- modular, heavy-duty
Description
Characteristics
Advantages
Applications
Technical Data
Technical specifications

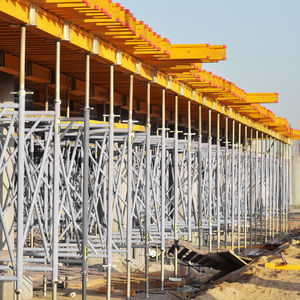

- Multidirectional shoring tower for high-load temporary support of slabs, beams and structures cast at height.
- Vertical uprights fitted with rosettes welded every 50 cm allowing eight independent 360° connections for maximum configuration flexibility.
- Each vertical element comprises four MP vertical standards joined by double wedge couplers; legs are connected in groups of four with lower and upper adjustable collars.
- Support towers are compatible with specialized accessories and can be combined to form towers or walls of any size.
Advantages
- Very high load capacity — designed for heavy-duty shoring applications.
- Modular assembly permits towers to be built to great heights.
- High versatility with a limited number of basic components.
- Wide range of base plates and head jacks to cover required working heights.
- Fast and safe assembly thanks to bolt-free double wedge couplers and light modular steel elements with high-load connections.
- Fully demountable for transport and reuse.
- Suitable for shoring on sloped structures.
Applications
- Industrial and heavy civil construction.
- Bridge and infrastructure construction.
Technical Data
- Load capacity: up to 200 kN per leg (maximum 800 kN for a 1.0 x 1.0 m tower).
Technical specifications
- Model: MP HD (multidirectional MP system adapted for high‑load shoring).
- Vertical uprights with rosettes welded every 50 cm providing eight independent 360° connections.
- Vertical element composition: 4 MP vertical standards joined by double wedge couplers.
- Tower assembly: legs connected in groups of four with lower and upper adjustable collars.
- Connection type: bolt-free double wedge couplers with high-load bearing capacity.
- Maximum load per leg: up to 200 kN; maximum load for 1.0 x 1.0 m tower: 800 kN.
- Can be combined to form towers or walls of any size; suitable for slabs and beams of various thicknesses.
- Designed for fast assembly, high flexibility, complete dismantling and use on sloped structures.
