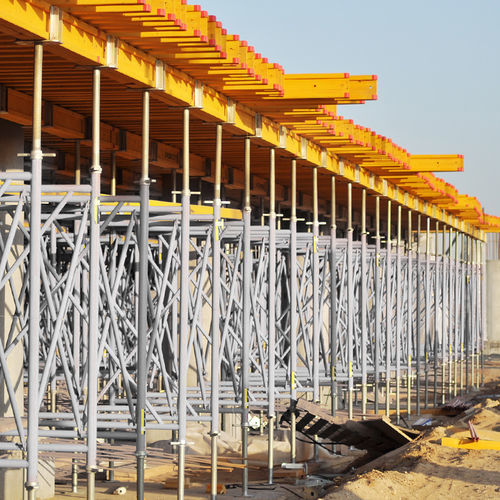

Steel shoring tower SIMPLEX HDmodularfor flooringheavy-duty
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Options
- modular, heavy-duty, for flooring
Description
Overview
Modular MP structure for heavy loads.
Characteristics
Advantages
Applications
Technical Data
Characteristics / Technical specifications
Modular MP structure for heavy loads.
Characteristics
- SIMPLEX HD towers can be assembled to precise dimensions using three frame heights and spindle extensions that allow centimeter-precise adjustment.
- Range of components enables construction of towers with bases from 1.5 x 1 m to 1.5 x 2.5 m.
- System can be assembled horizontally or upright and then lifted or shifted into place with a crane.
Advantages
- Time-saving assembly process
- Quick and simple setup with limited components
- Configurable as a stair tower
- Minimal component variety required for complete systems
Applications
- Skyscrapers
- Industrial construction
- Bridge construction
Technical Data
- Load capacity: up to 100 kN per leg
- Frame heights: 1.10 m, 1.50 m, 1.80 m
- Diagonal dimensions: five options from 0.75 m to 2.50 m
- Connecting couplers between frames ensure stability during lifting and shifting
- Concrete surface finish
Characteristics / Technical specifications
- Load performance: up to 100 kN per leg
- Available frame heights: 1.10 m / 1.50 m / 1.80 m
- Diagonal sizes: 0.75 m to 2.50 m (5 options)
- Possible tower bases: from 1.5 x 1 m to 1.5 x 2.5 m
- Adjustment via spindle extensions for centimeter-precise tuning
- Assembly modes: horizontal or upright; towers can be lifted/shifted with crane
- Connecting couplers provide stability during handling
- Configurable as stair tower
- Few components required for a full system
- Surface: concrete finish
