Stage platform STAGES

Add to favorites

Compare this product

Description

Characteristics

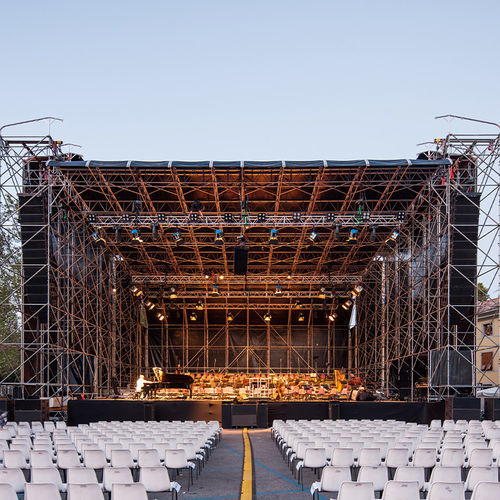

MP multidirectional structures for stages with standard modules 200×200 cm and 200×100 cm and a base module height of 130 cm, combinable as required.
Walkway surfacing options: 200×50 cm non-slip class 1 fireproof plywood stage boards or beam-supported large wood boards.
The stage is provided with access stairs; height is adjustable using stringers of different sizes. Rails can be executed with standard MP uprights or with a single closing element.
Optional lateral single or double walls compatible with MP multidirectional scaffolding, directly connected to the stage to allow attachment of motors for lifting the covering and for audio equipment. Walls can be obscured and protected with PVC sheets fixed to the structure via aluminium guides and clamps.

Advantages

Applications

Standards

Designed in compliance with the New Technical Standards for construction (14/01/2008, Table 3.1.11)
Compliant with European structural design standards: Eurocode 1, Eurocode 3, Eurocode 9

Technical specifications

Standard module dimensions: 200×200 cm and 200×100 cm
Standard module base height: 130 cm (adjustable via different stringer sizes)
Walkway surfacing: 200×50 cm non-slip class 1 fireproof plywood boards or beam-supported large wood board
Stage load capacity: 700 kg/m²
Access stairs included
Height adjustable via stringers of different sizes
Rails: standard MP uprights or single closing element
Optional lateral walls: single or double, connectable to stage for motor and audio attachment
Walls can be obscured/protected with PVC sheets fixed by aluminium guides and clamps
Designed and verified according to indicated technical standards and Eurocodes
