Aluminum scaffolding T110
PVC

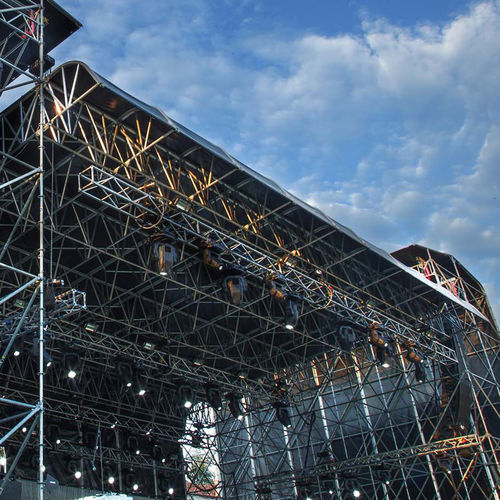

Aluminum scaffolding - T110 - Pilosio - PVC
Aluminum scaffolding - T110 - Pilosio - PVC
Aluminum scaffolding - T110 - Pilosio - PVC - image - 2
Aluminum scaffolding - T110 - Pilosio - PVC - image - 3
Aluminum scaffolding - T110 - Pilosio - PVC - image - 4
Aluminum scaffolding - T110 - Pilosio - PVC - image - 5
Aluminum scaffolding - T110 - Pilosio - PVC - image - 6
Add to favorites
Compare this product

Characteristics

Material
aluminum, PVC

Description

Product overview
  • Single pitch covering system, practical and easy to assemble, consisting of modular aluminium beams and PVC sheet for entertainment and events.
  • The modular structure can be combined with the MP multidirectional system, is used to fasten lighting and sound systems, and serves as weather protection for stages.
  • The covering can be lifted by a motor winch or manually for small dimensions.
  • The single pitch structure can be cantilevered to protect tribunes, flight steps and stages by adding a supplementary beam for connection to a multidirectional wall.


Advantages
  • Fast and easy assembly.
  • Extremely easy handling thanks to the lightweight nature of the components.
  • Modularity allowing great flexibility of dimensions.
  • High load capacity due to comprehensive stiffening.
  • Possibility of creating cantilevered protections.
  • Uprights and diagonals positioned below the covering to prevent irregularities in the PVC sheet.


Applications

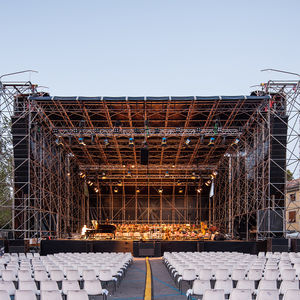

  • Events (stages, tribunes, temporary coverings for entertainment and outdoor events).


Technical Data
  • Main structure: modular aluminium beams with single pitch 110 cm height, creating a lattice of 200×250 cm.
  • Stiffening diagonals provided over the entire structure to allow a heavy load capacity.
  • Beams equipped with an upper guide profile for housing the PVC sheet.
  • Uprights, diagonals, bracings and stiffening in 48 mm aluminium tube with a unique quick hooking system (QUICK SYSTEM) that reduces installation time.


Characteristics / Technical specifications
  • Structure type: single pitch covering system, modular.
  • Materials: aluminium beams and 48 mm aluminium tube for uprights/diagonals/bracings/stiffening.
  • Pitch height: 110 cm (single pitch).
  • Modular bay grid: 200×250 cm lattice.
  • PVC sheet housed in upper guide profile on beams.
  • Stiffening diagonals across entire structure for high load capacity.
  • Lifting: motor winch or manual (for small dimensions).
  • Compatibility: combinable with MP multidirectional system; can fasten lighting and sound systems.
  • Cantilever option: supplementary beam allows cantilevered protection for tribunes and stages.
  • Quick assembly: quick hooking system (QUICK SYSTEM) to reduce installation time.
