Central fireplace insert FORMA

bioethanolsteelcontemporary

Product overview

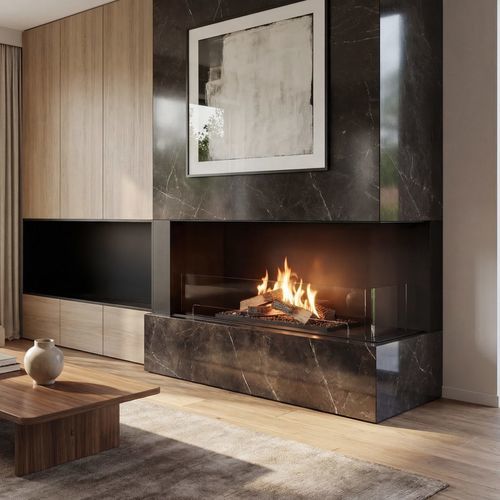

FORMA with Flue Connection is a modern, automatic bioethanol fireplace insert that recreates the look of a traditional fireplace while offering automated, safe BEV operation. The unit features the FLOGS burner integrated into a dedicated zero-clearance casing with a conventional flue connection. A built-in hood collects excess heat and directs it outside the building, allowing the flame to remain a central design element while maintaining comfortable room temperatures. Realistic ceramic logs and high, dynamic flames deliver the appearance of a traditional hearth without smoke, fumes, or mess.

Key features

• FLOGS burner delivering realistic ceramic log arrangement and dynamic flames
• Conventional flue connection option to extract excess heat
• Zero-clearance dedicated casing enabling safe installation in combustible materials
• Heat control with adjustable flame height
• BEV (Burning Ethanol Vapours) technology for clean combustion

Dedicated zero-clearance casing — freedom of integration

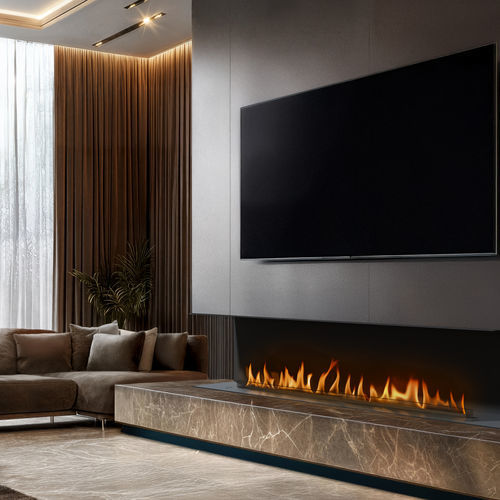

The specially designed zero-clearance enclosure protects surrounding structures and allows safe installation in combustible materials. The construction permits full integration into walls, furniture, or architectural features, including configurations with a TV installed above or near the firebox, enabling the fireplace to become a seamless part of the interior.

FLOGS burner — the look of a traditional fireplace
The FLOGS burner recreates the visual depth and authenticity of a classic fireplace: realistic ceramic logs positioned within high, dynamic flames. It operates using BEV technology producing no smoke, soot, or residues while delivering a natural and immersive fire experience suitable for modern interiors.

Smart control
The fireplace supports full control via handheld remote, mobile app or Smart Home System. Features include multi-level flame regulation (6 levels), operation adjustment with precision, integrated touch panel with child lock, and automatic fuel refill integration for safe, consistent operation.

Automatic refuelling
An integrated automatic pump transfers bioethanol from an external container into the internal fuel tank in a fully controlled process that eliminates manual pouring, prevents spills and overfilling, and continuously monitors fuel levels to support uninterrupted use.

Installation options

• SINGLE-SIDED
• LEFT CORNER
• RIGHT CORNER
• THREE-SIDED

Caractéristiques / spécifications techniques

• Chimney — Not required, with an option for connection
• Heat output — 7 kW
• Required room volume — 70 m3
• Fuel — Bioethanol 95 – 96.6%
• Fuel tank capacity — 5.5 L
• Burning time — Up to 8 h
• Power supply — 230 V
• Flame height adjustment — 6 levels
• Materials — Steel, galvanized steel, tempered glass
• Finish — Black powder-coated paint
• Intended use — Indoor use
