The quality engineered wheelchair lift is designed to reach distances of up to 3 metres and can be made to specification. It provides an alternative solution to a fully enclosed platform lift and is suitable for both commercial and residential environments.

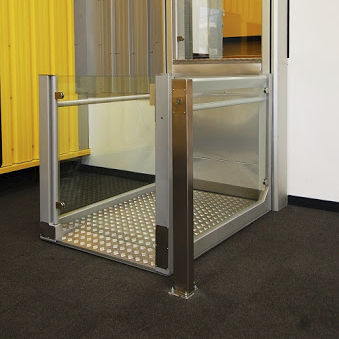

The Open Platform Lift has been specifically designed for applications with little or no alterations to existing buildings. It is independent of fixings, a machine room or external cabinet.
The open style design offers an aesthetically pleasing solution with brushed stainless steel finish as option.
The lift provides a safe and easy way to gain access to a property where stairs would otherwise prevent wheelchair access. It is designed to give customers choice and flexibility. This open platform lift is a space saving and cost effective way to provide access for all.
Our latest Italian designed model carries the CE marking.
Rated Load - 400kg
Drive - Belt Driven
Travel Distance - 600mm min - 3000mm max
Travel Speed - 0.15 m/s
Motor - 2.2kw
Power Supply - 240v single phase at 40A or 415 3 phase
Standard Colours - Ral 9006 and any Ral colour as an option
Platform Sizes - 900mm x 1400mm, 1100mm x 1400mm
Cabin Sizes - 1100mm x 1770mm, 1300mm x 1770mm
Gate Sizes - 950mm x 1100mm
Features -
Platform - L shaped platform, standard hardrail on both sides, standard buttons
& emergency stop
Gates - Steel, stainless steel framed fully glazed (automatic available)
Flooring - Vinyl, rubber, aluminium or flooring by others
