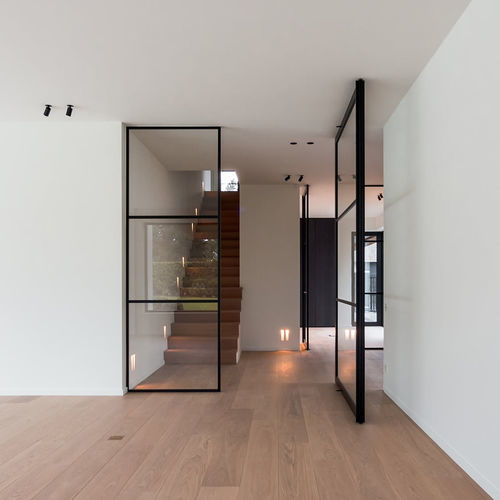

Interior door PORTAPIVOT 5730
tempered glassanodized aluminumtwo-way

interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
interior door
Add to favorites
Compare this product


Characteristics

Type
interior
Material
tempered glass, anodized aluminum
Opening system
two-way, pivoting
Glazing
glazed
Configuration
with side panels
Color
black, copper-colored, silver colored
Other characteristics
with fixed leaf, full-height, decorative
Height

Max.: 2,975 mm (117.13 in)

Min.: 1,800 mm (70.87 in)

Width

Max.: 4,500 mm (177.17 in)

Min.: 750 mm (29.53 in)

Description

Pivot door system made from high quality anodized aluminium available in 4 decorative finishes, black, silver, bronze and stainless steel. Anodizing is an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant finish. The frame can be fitted with any 6 or 8 mm thick tempered glass for endless design purposes. Specifications Pivot door = minimal frame 57 x 30 mm Fixed partition = minimal frame 35 x 30 mm Available in 4 anodised colours Compatible with 6 or 8 mm glass Stealthpivot fitted inside frame Available with and without door frame Easy assembly & installation Dimensions Minimum height: 1800 mm Maximum height: 2975 mm Minimum width: 750 mm Maximum width: 4500 mm Portapivot 5730 + 3530 kit Made to measure aluminium frame 57 x 30 mm Made to measure aluminium frame 35 x 30 mm Stealthpivot hinge set Assembly accessories Stealthpivot Compact size Modular axis point Self-closing technology -90° 0° +90° open/hold positioning Configurable swing operation: 180° or 360°
